Filter Holder Gasket 74×36×11 mm – for DeLonghi EC & BAR Models

Group gasket for older DeLonghi EC and BAR machines

Long-running DeLonghi models like the EC155 and BAR32 share this gasket. A tired seal shows up as drips down the portafilter or a handle that turns too far.

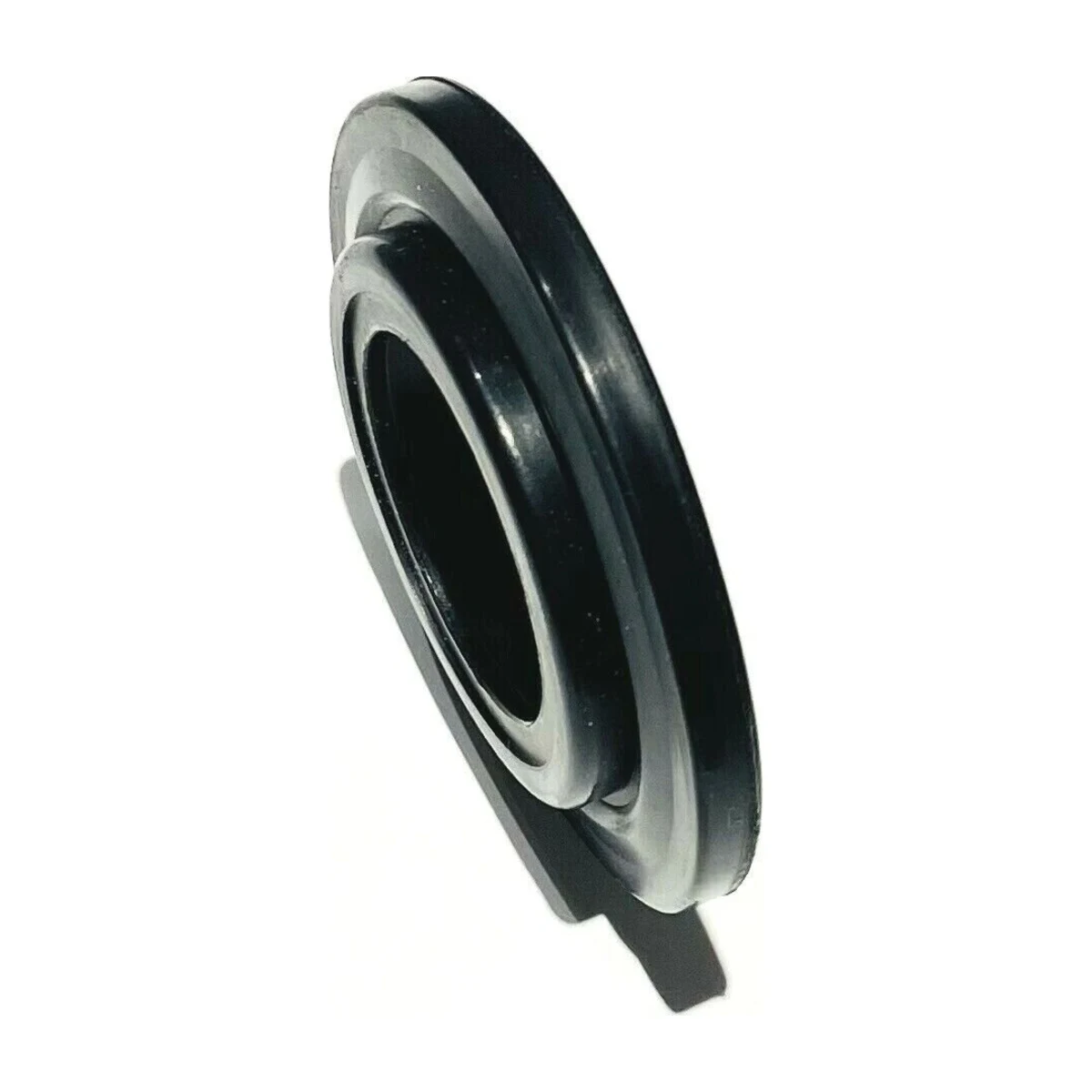

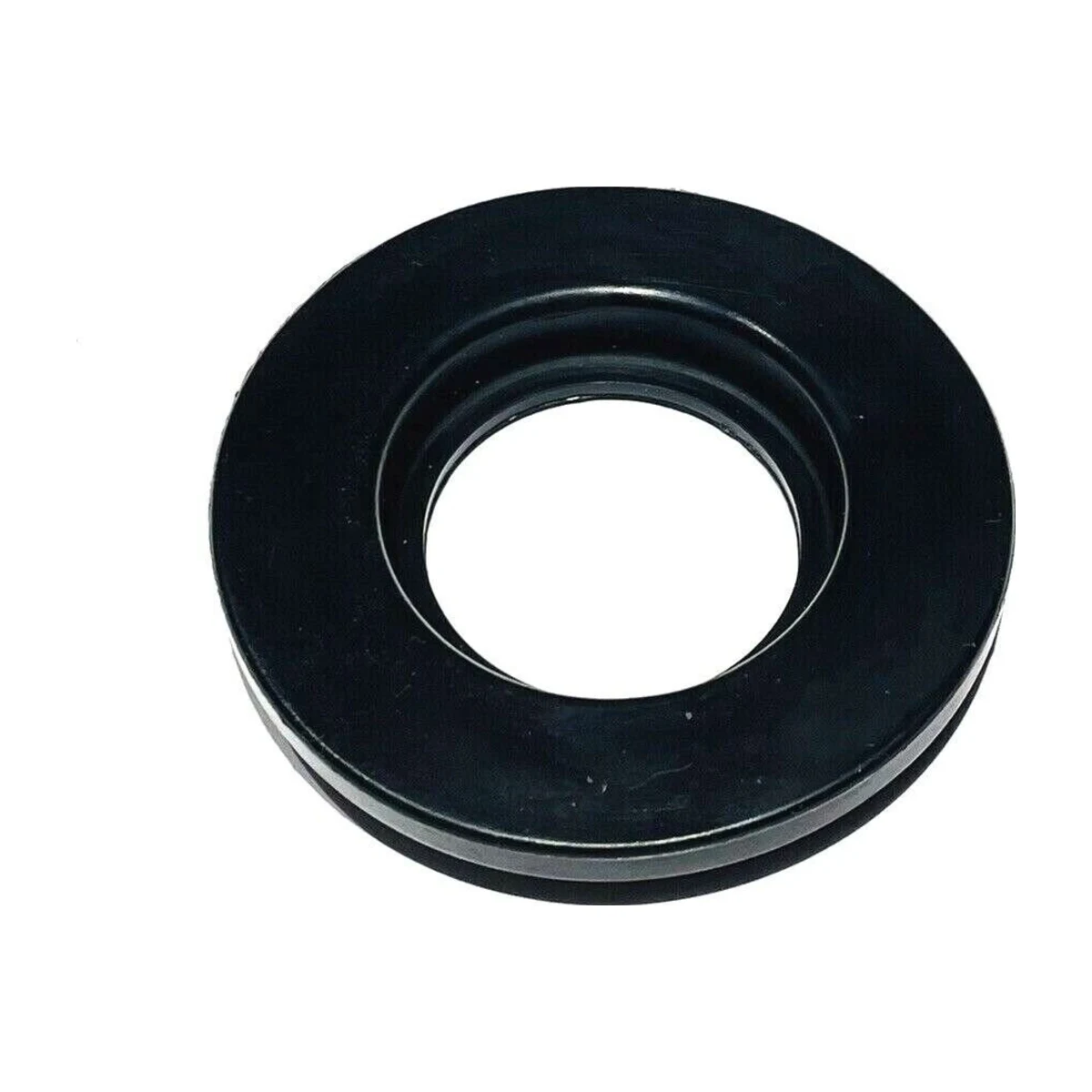

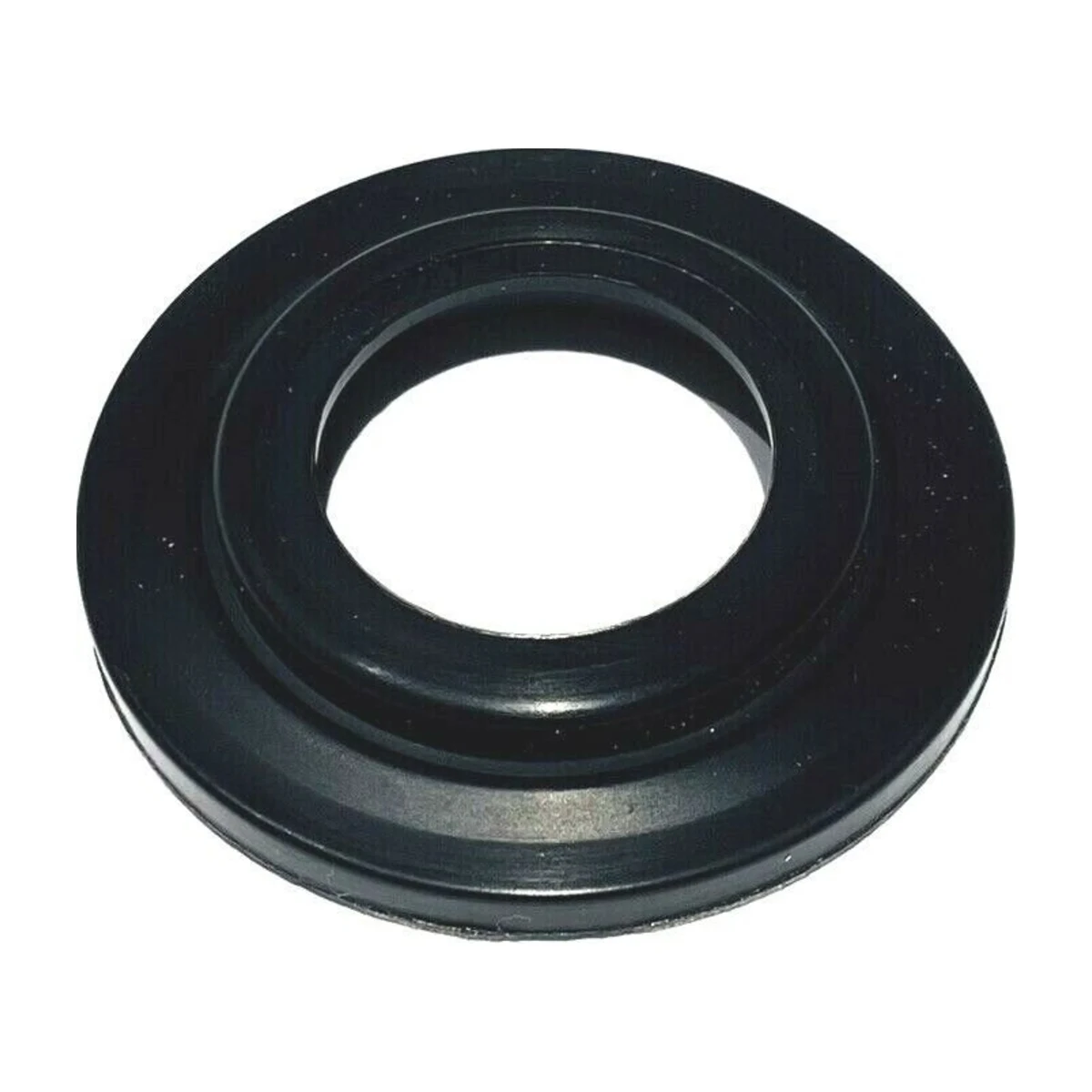

Flanged ring, 11 mm deep

The gasket has a wide outer flange and a narrower step that meets the filter basket rim. At 11 mm deep with a 36 mm opening, it differs from the ECP-series seal, so check the size before ordering. Remove the shower screen first to reach the gasket, and clean the screen while it is out. Old seals often leave rubber fragments behind in the seat.

Specifications

• DeLonghi Gasket 74×36×11 Outer diameter: 74 mm
• DeLonghi Gasket 74×36×11 Inner diameter: 36 mm
• DeLonghi Gasket 74×36×11 Thickness: 11 mm
• DeLonghi Gasket 74×36×11 Material: Rubber
• DeLonghi Gasket 74×36×11 Colour: Black
• DeLonghi Gasket 74×36×11 Pack size: 1 gasket

DeLonghi models listed

The supplier list includes EC140, EC145, EC150, EC155, EC190, EC200, EC220, EC250, EC270, EC300M, EC330S, EC410, EC460, EC700, EC710, BAR12F, BAR14, BAR32, BAR42 and BCO260/261/264/410/420. For ECP and Icona machines use the 74.5×32×12 mm gasket; a pack of DeLonghi O-rings is handy too.
