IMS 58 mm Precision Basket – 16/18 g, Ridgeless, H24 (B702TFH24)

IMS precision basket for E61 machines

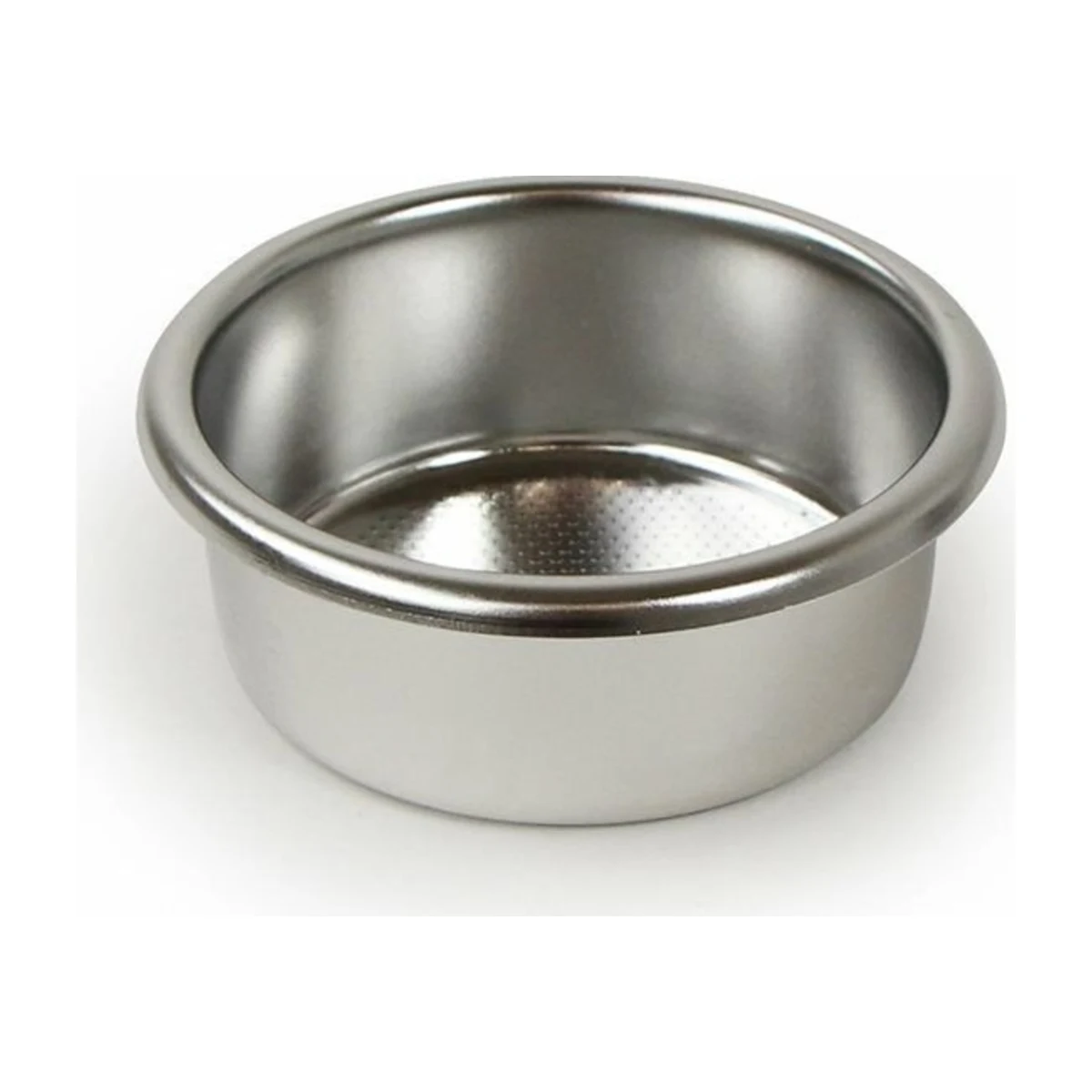

Made in Italy by IMS, the B702TFH24 is a precision double basket for 58 mm portafilters. It is rated for 16 to 18 g of coffee and stands 24 mm tall. The code breaks down as a 70 mm rim (B70), two-cup capacity (2T) and 24 mm height (H24).

Ridgeless, flat-bottom design

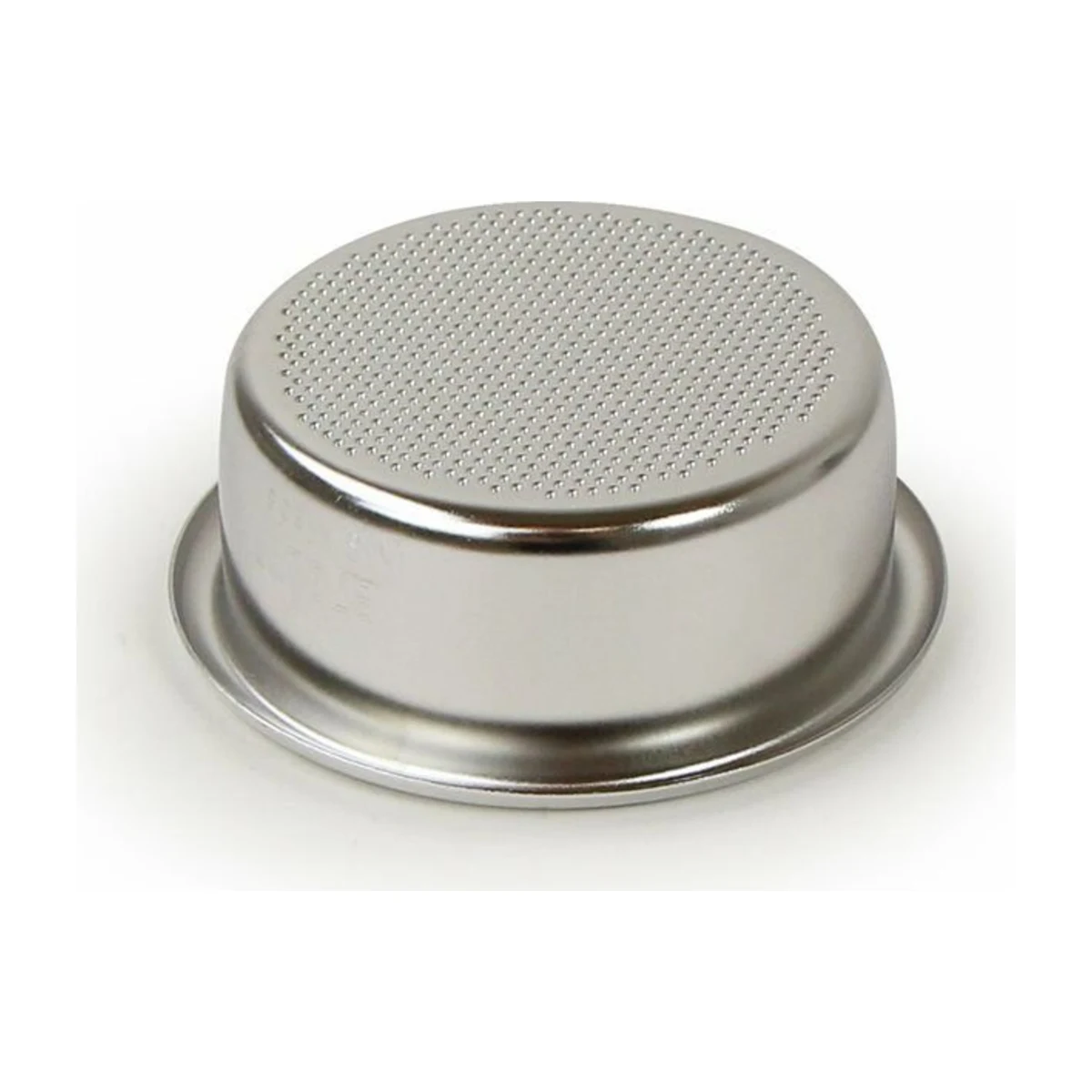

Unlike most baskets it has no pressed channel around the wall, giving a smooth outer surface that IMS designed for E61-type groups. The flat base carries roughly 715 round holes with a tapered cross-section, which helps an even flow through the puck. It is pressed from AISI 304 food-safe stainless steel.

Specifications

• IMS B702TFH24 Model code: IMS B702TFH24
• IMS B702TFH24 Tamper size: 58 mm
• IMS B702TFH24 Rim diameter: 70 mm
• IMS B702TFH24 Height: 24 mm
• IMS B702TFH24 Dose: 16–18 g
• IMS B702TFH24 Holes: Approx. 715, tapered
• IMS B702TFH24 Material: AISI 304 stainless steel
• IMS B702TFH24 Style: Ridgeless, flat bottom

Fit notes

Without a ridge the basket can sit loosely in portafilters that rely on a spring clip, so it suits handles that hold the basket by the rim. If you need a ridged IMS basket, look at the IMS B70 2T H24.5 M. Pair it with a 58 mm tamper from our tamper range.
