Anti-Vacuum Valve 3/8″ BSP – Brass, for Rancilio Classe & Epoca

Brass Anti-Vacuum Valve, 3/8″ BSP

When a boiler cools, steam condenses and pulls a vacuum that can draw milk back through the wand. The anti-vacuum valve lets air in as the boiler cools and closes again once pressure builds. This version is solid brass with a 3/8″ BSP thread and a hex body.

Plain stem version

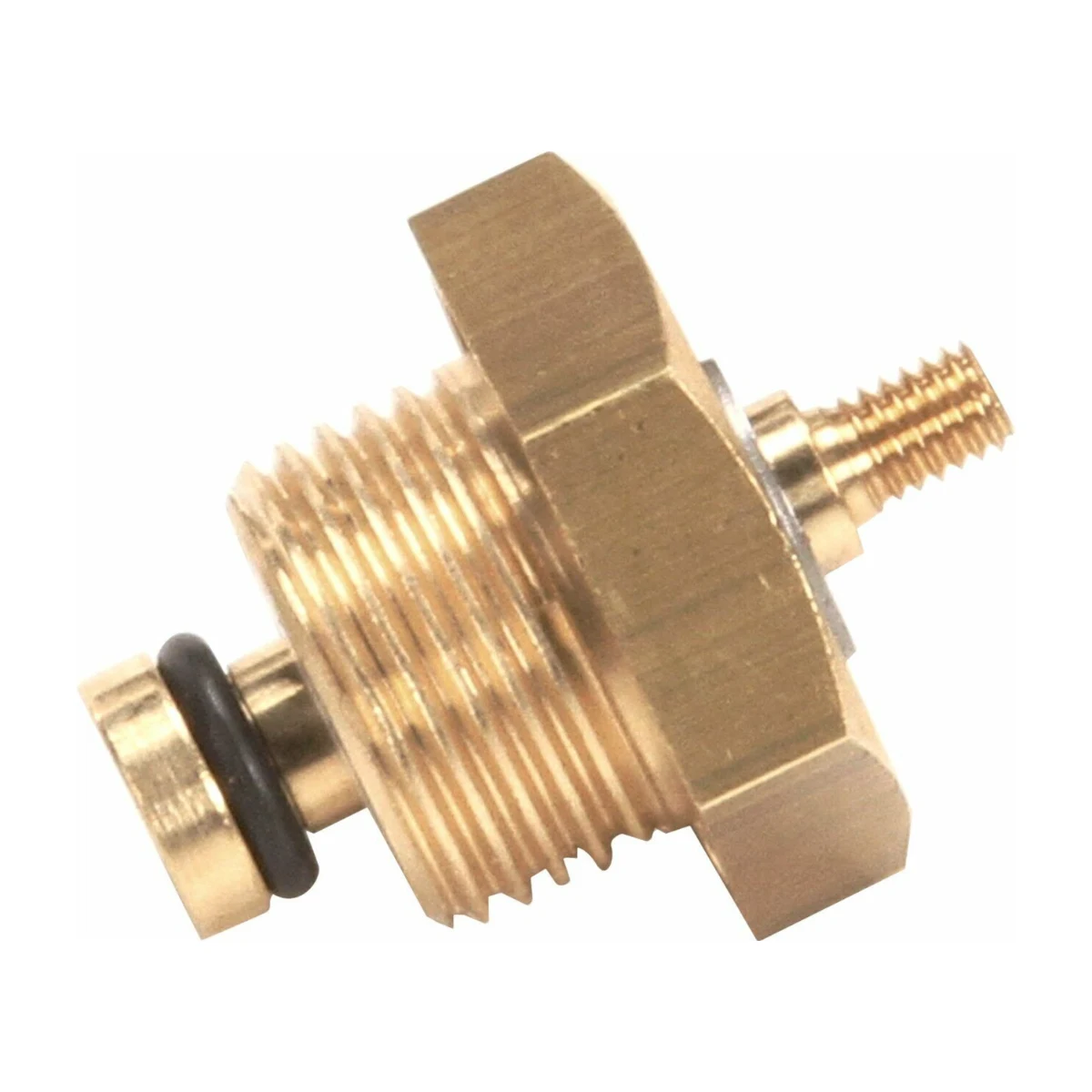

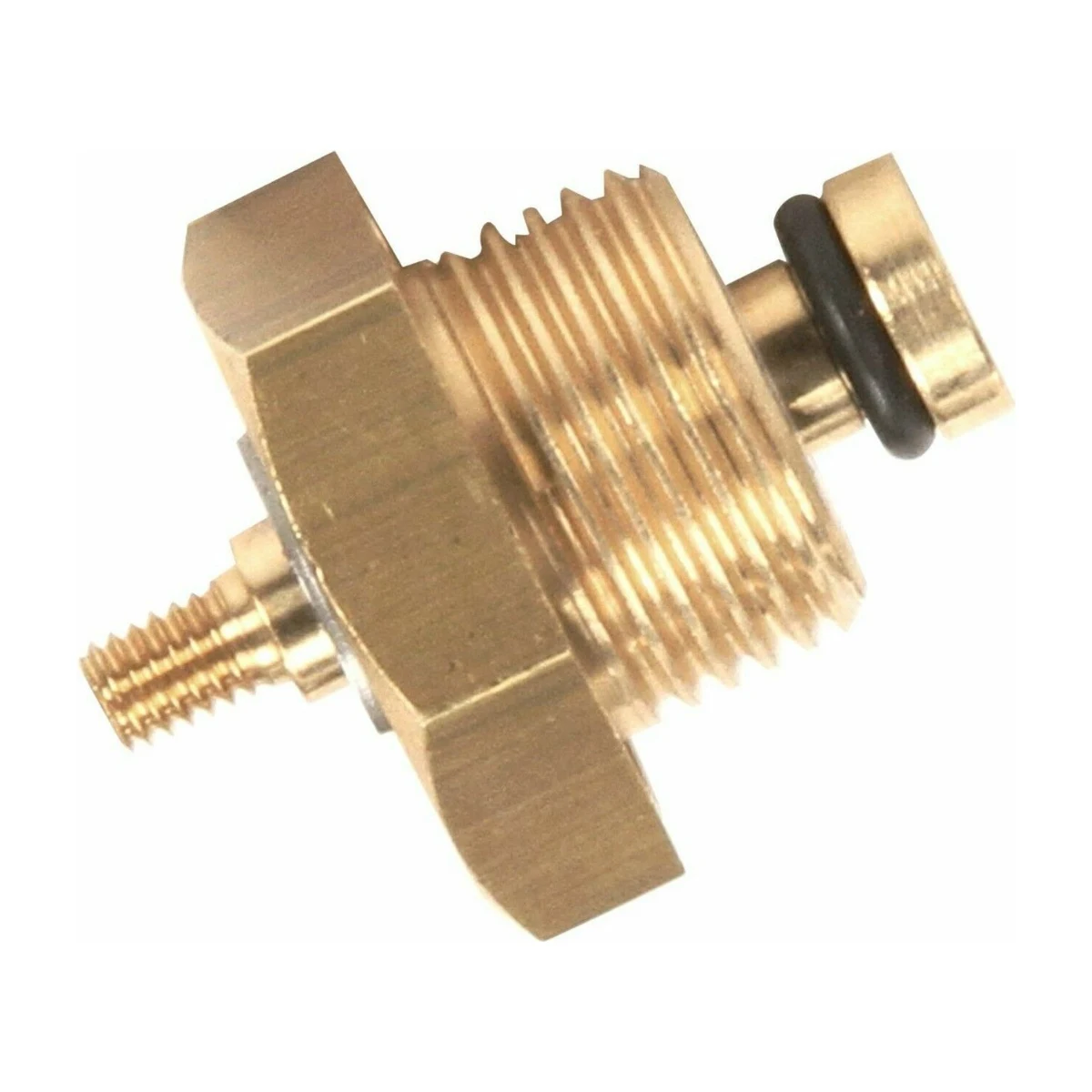

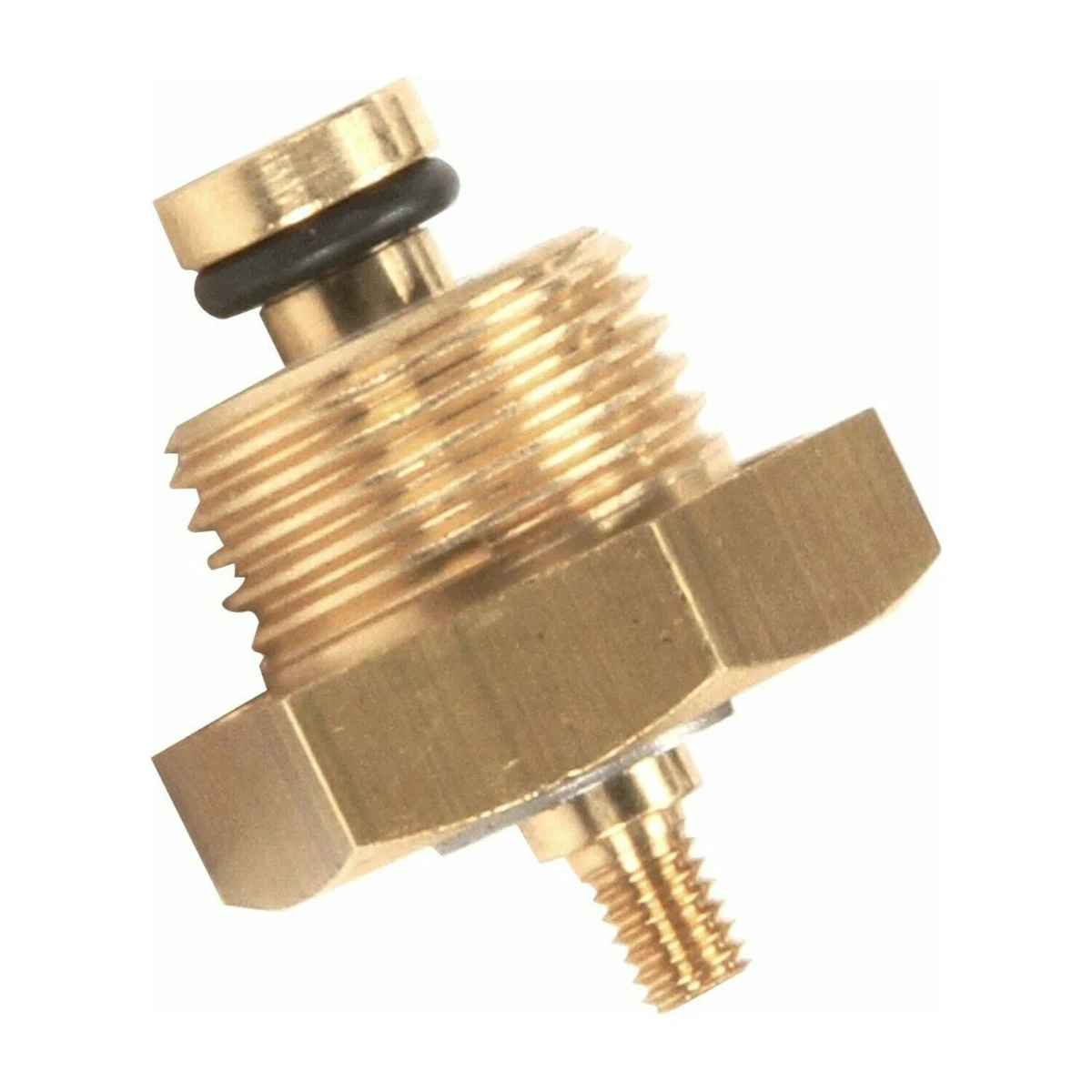

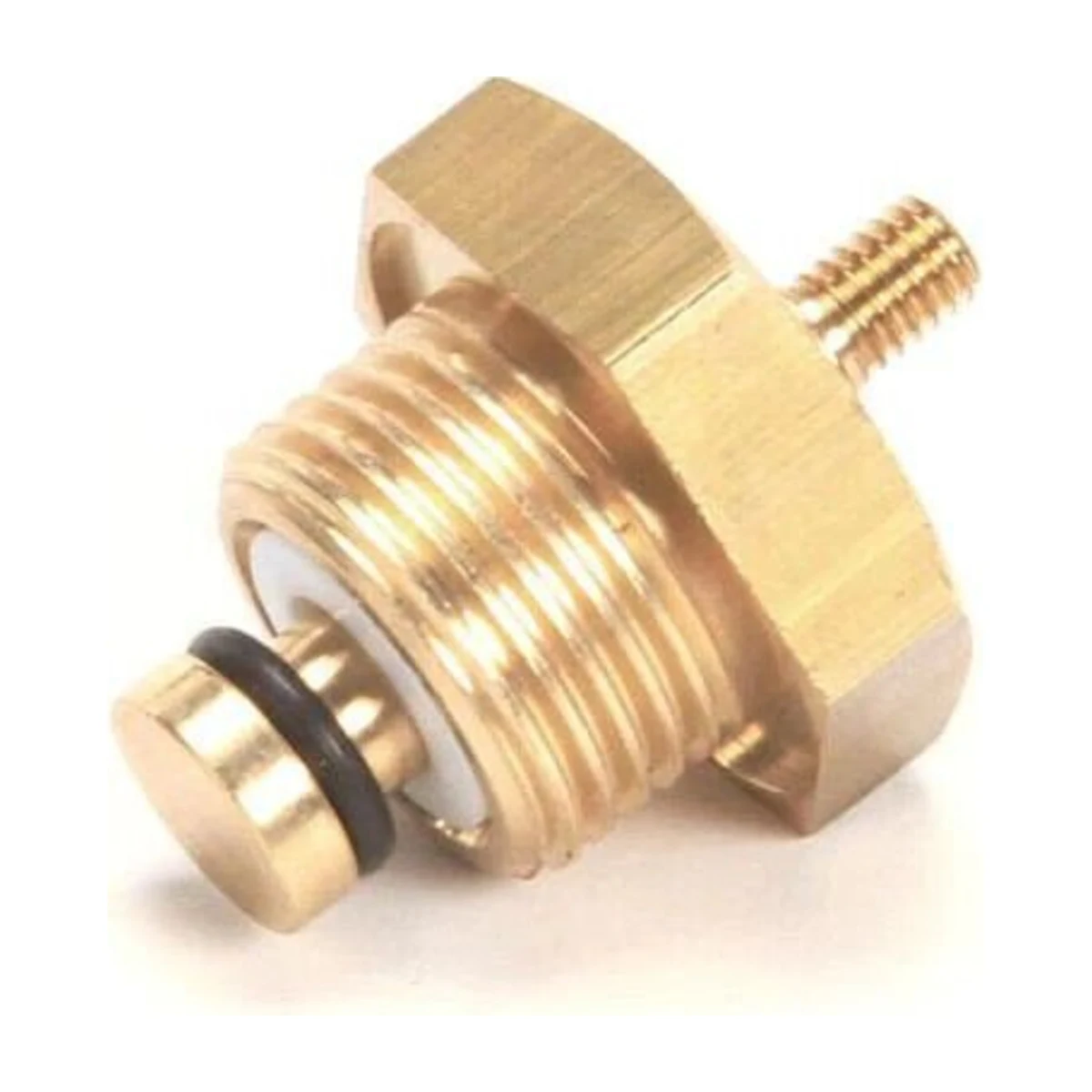

It has a sprung piston with a black O-ring on the boiler side and a short threaded stem on top. There is no weight cap, which separates it from the weighted variant below. A tired valve hisses constantly or lets the boiler run flat, so it is worth replacing at service time.

Specifications

• Anti-Vacuum Valve 3/8″ – Rancilio Classe Thread: 3/8″ BSP male
• Anti-Vacuum Valve 3/8″ – Rancilio Classe Material: Brass
• Anti-Vacuum Valve 3/8″ – Rancilio Classe Seal: O-ring piston
• Anti-Vacuum Valve 3/8″ – Rancilio Classe Size: approx. 25 × 23 mm
• Anti-Vacuum Valve 3/8″ – Rancilio Classe Ref. number: 1523651 (supplier)
• Anti-Vacuum Valve 3/8″ – Rancilio Classe Pack: 1 valve

Machines it suits

The old listing names Rancilio Classe 7 E/S (standard, compact and tall), Classe 9 S and USB, Xcelsius, and Epoca E/S 1 and 2-group. If your old valve has a brass cap on top, choose the anti-vacuum valve with weight instead. While the group is apart, consider a fresh Rancilio group head seal.
