Olab 3-Way Solenoid Valve 240 V – for Breville BES900/920/980/990

Three-way solenoid for Breville dual boilers

The solenoid opens water to the group during a shot and vents pressure afterwards. When it sticks, you may see no flow, a wet sloppy puck or water spurting from the drain.

Olab coil and stainless flange

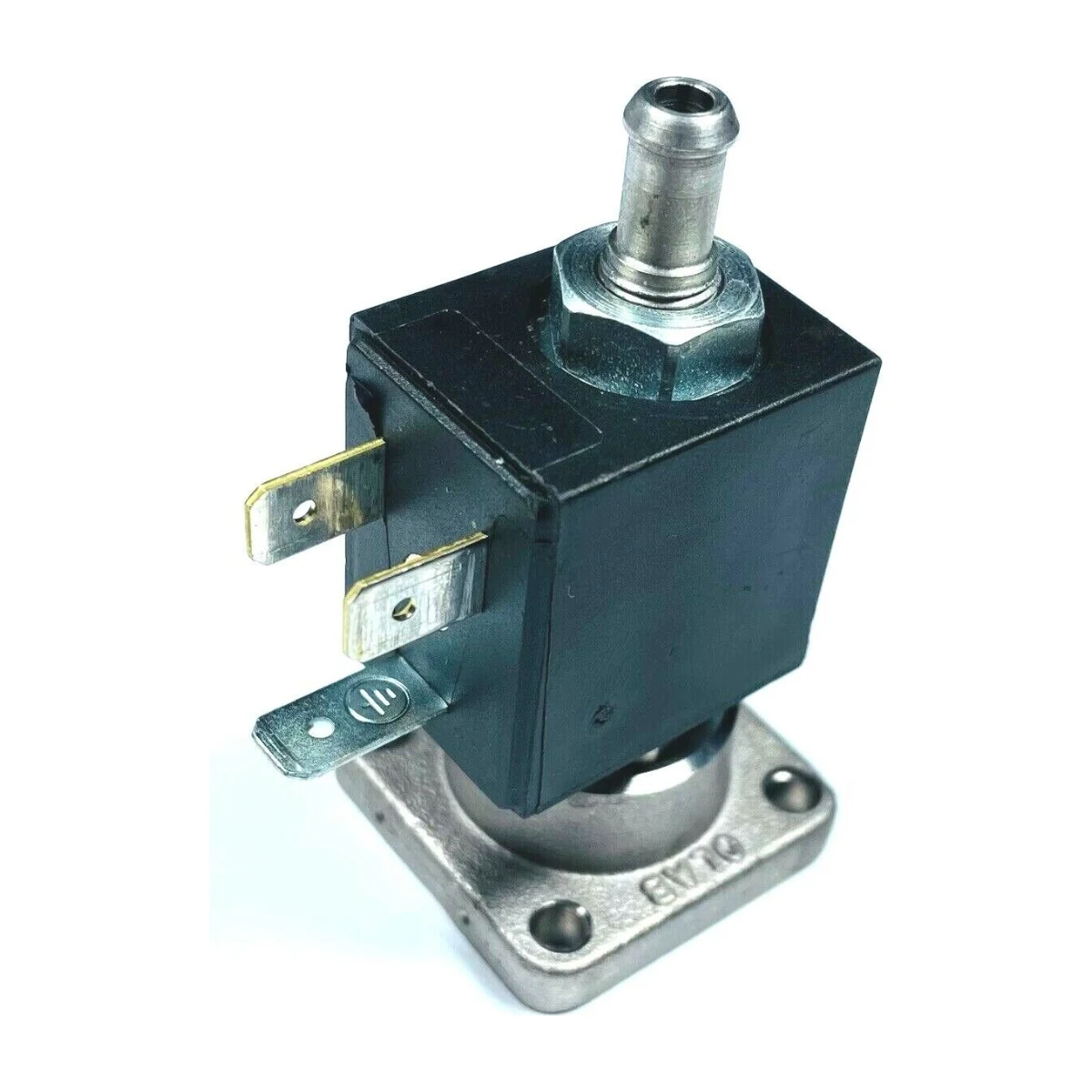

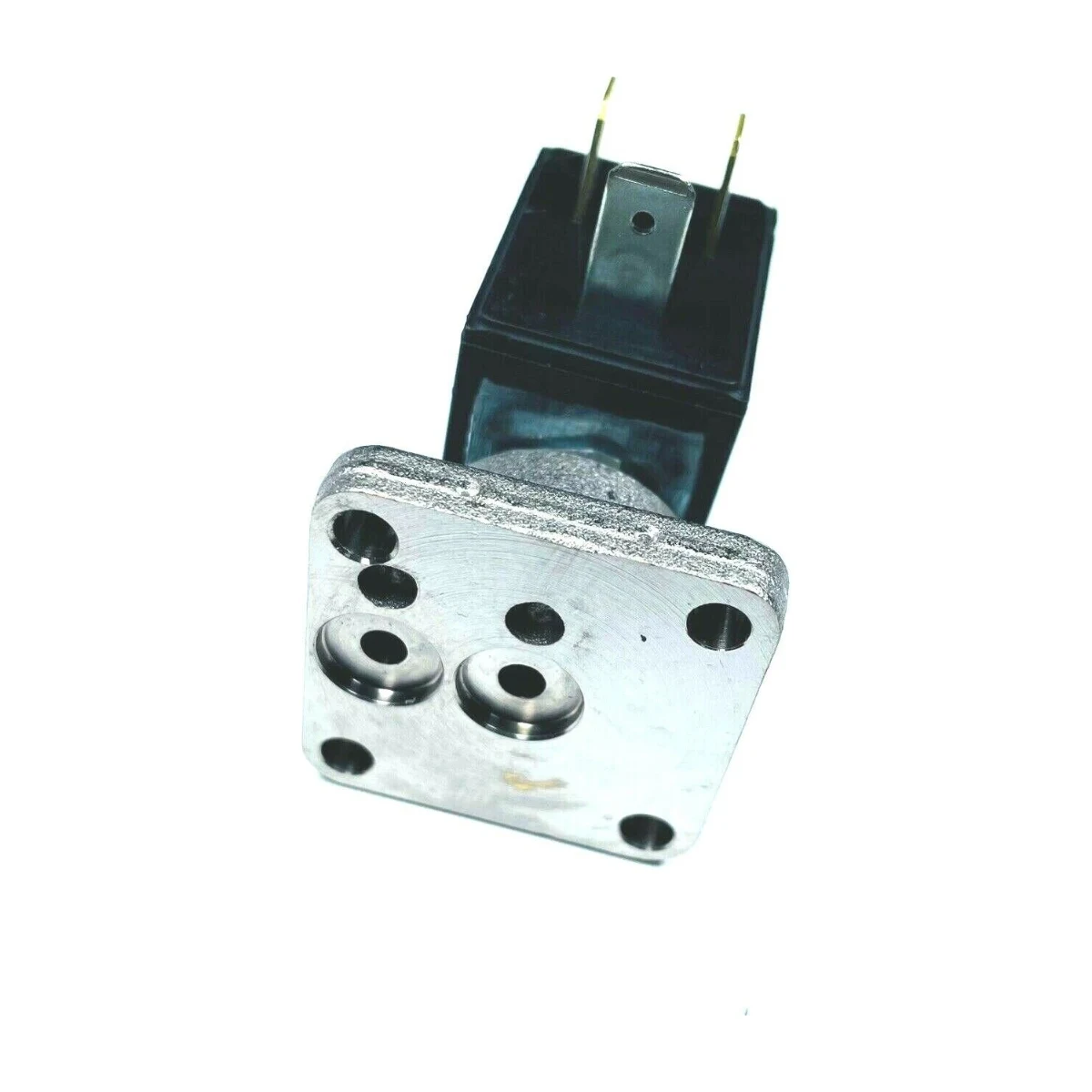

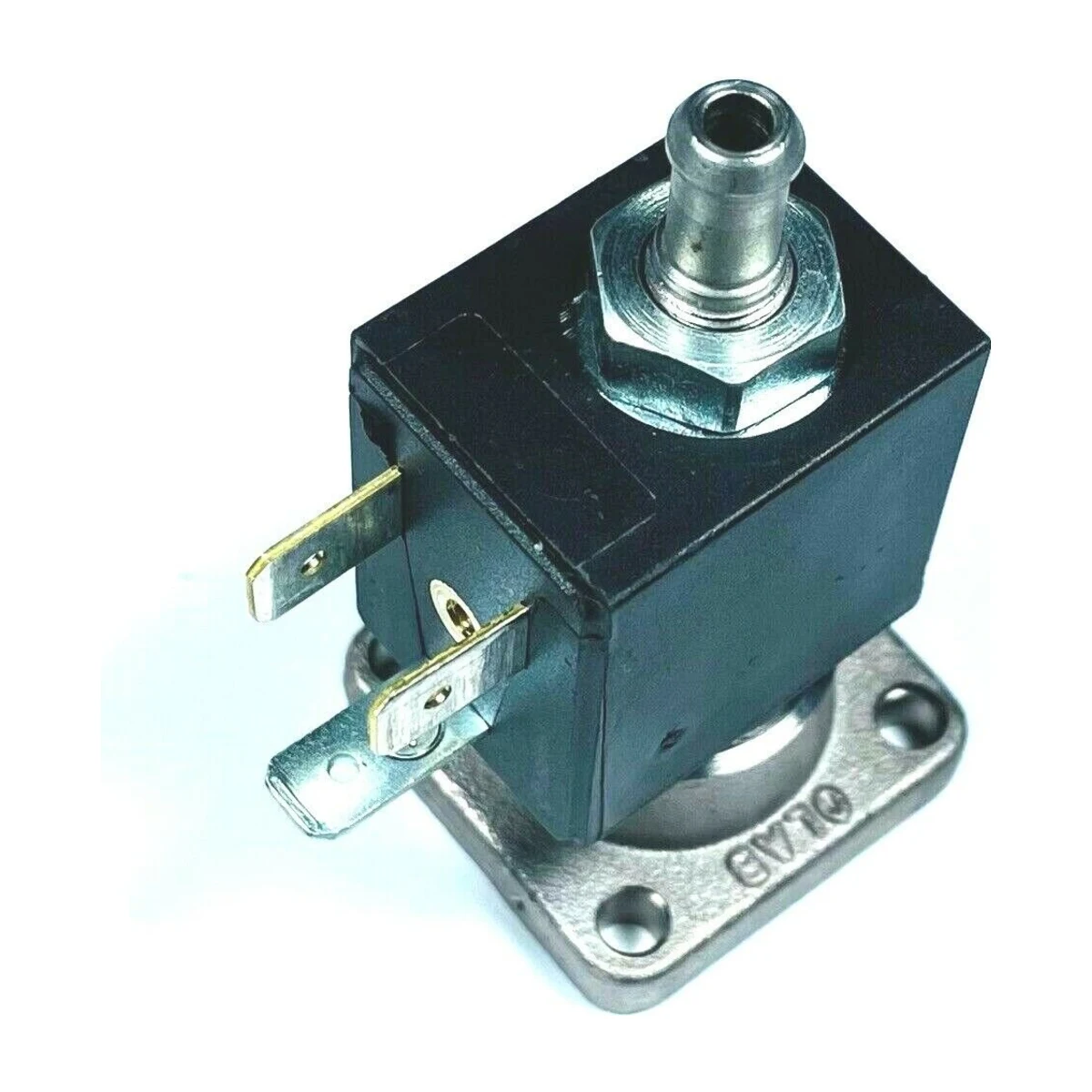

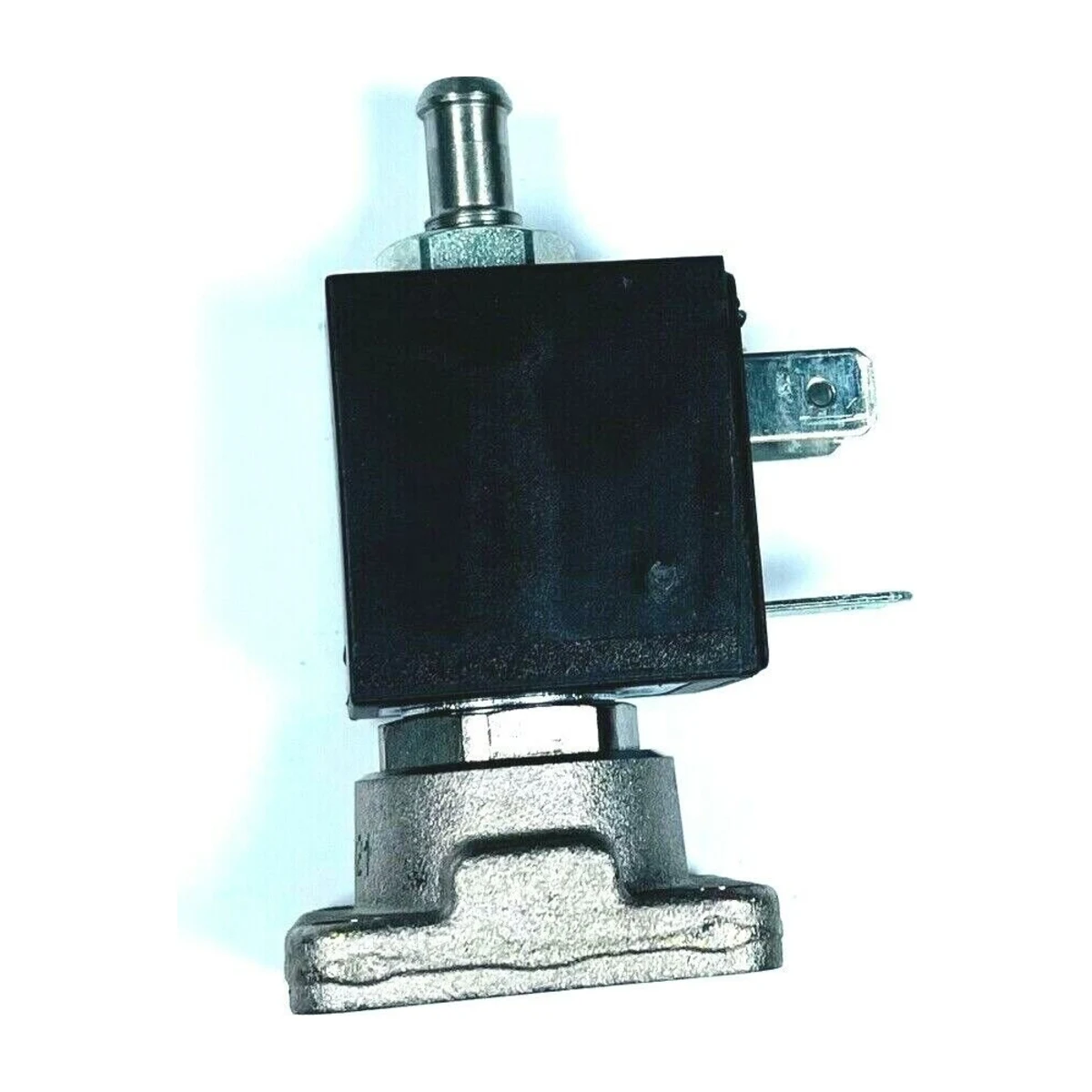

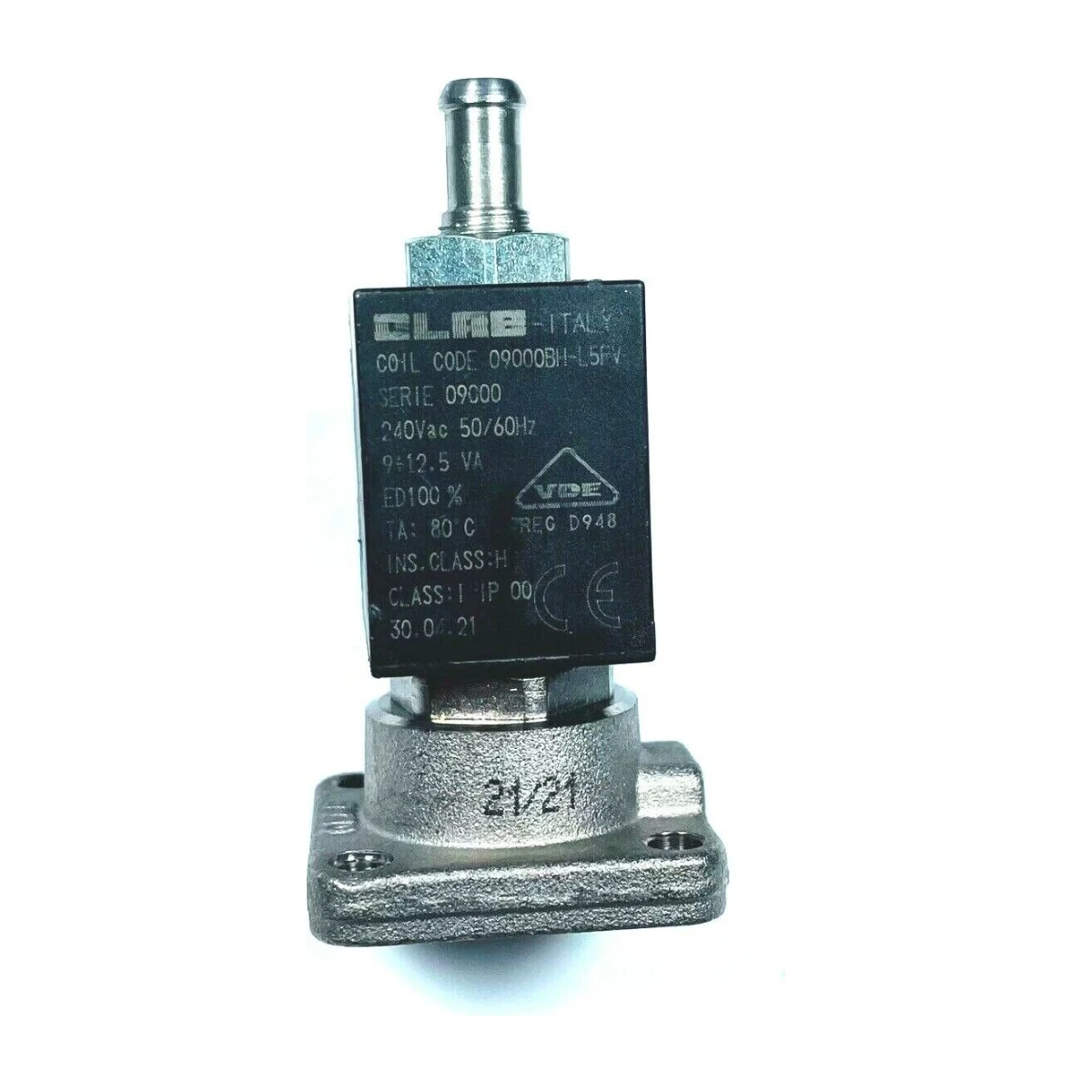

This valve carries an Olab coil marked series 09000, 240 V AC 50/60 Hz, 9–12.5 VA and insulation class H. It mounts through a square stainless flange with four screw holes, and has a barbed outlet on top for the drain hose. Unlike generic coils, this assembly comes complete with the valve body and flange, so there is no need to transfer parts from the old unit.

Specifications

• Breville Solenoid Valve Brand: Olab (Italy)
• Breville Solenoid Valve Series: 09000
• Breville Solenoid Valve Coil: 240 V AC, 50/60 Hz, 9–12.5 VA
• Breville Solenoid Valve Type: 3-way, flange mount
• Breville Solenoid Valve Supplier code: PS5114926
• Breville Solenoid Valve Size: approx. 65 × 42 × 30 mm

Breville models

Listed for Breville BES900, BES920, BES980 and BES990. While the machine is open it is a good time to fit a new BES900/920 group head seal and an IMS shower screen for BES920-series.

This is a mains-voltage part – book a repair and our technicians can fit it for you safely.
