E61 Shower Screen 60 mm – Mesh with Centre Disc

60 mm E61 Shower Screen with Centre Disc

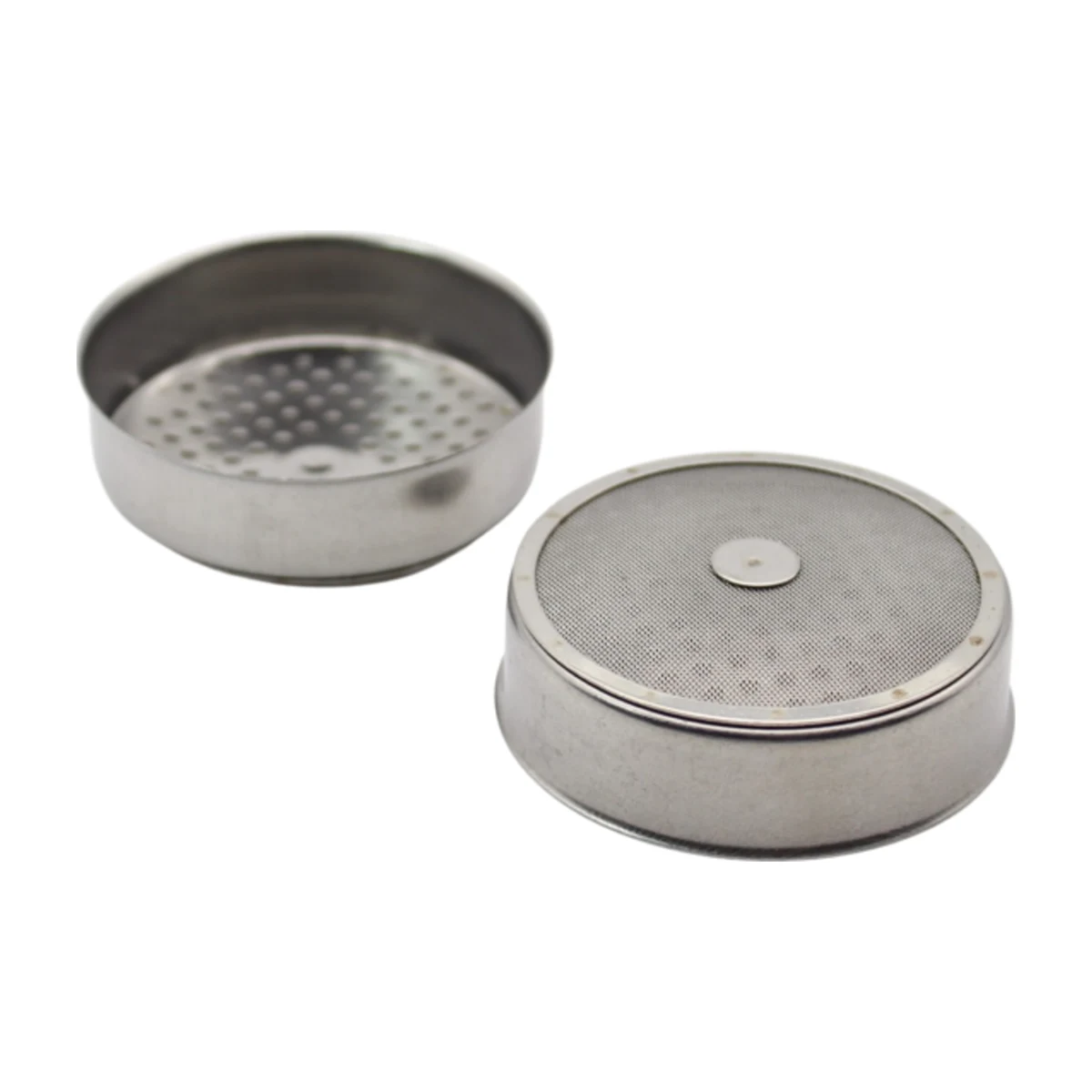

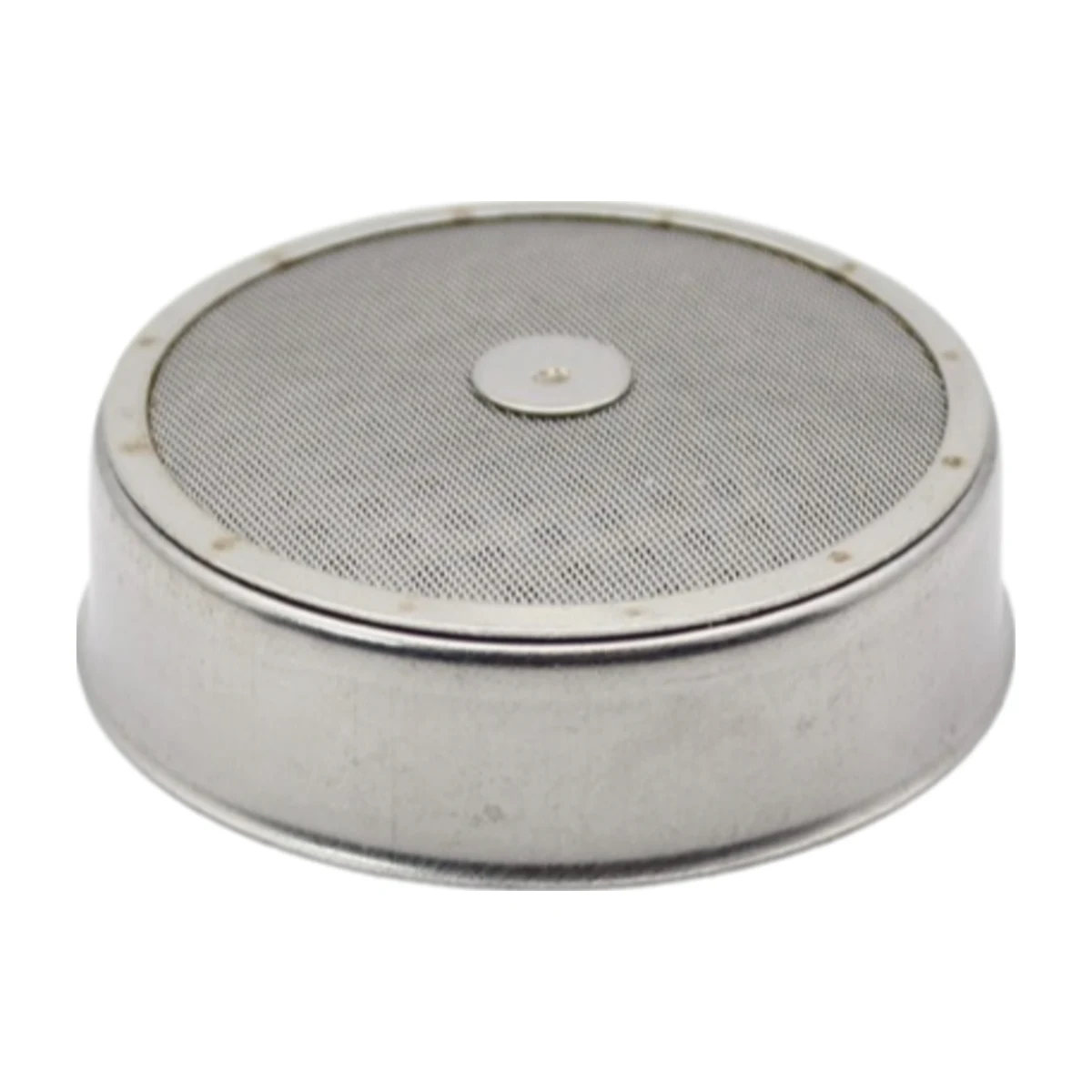

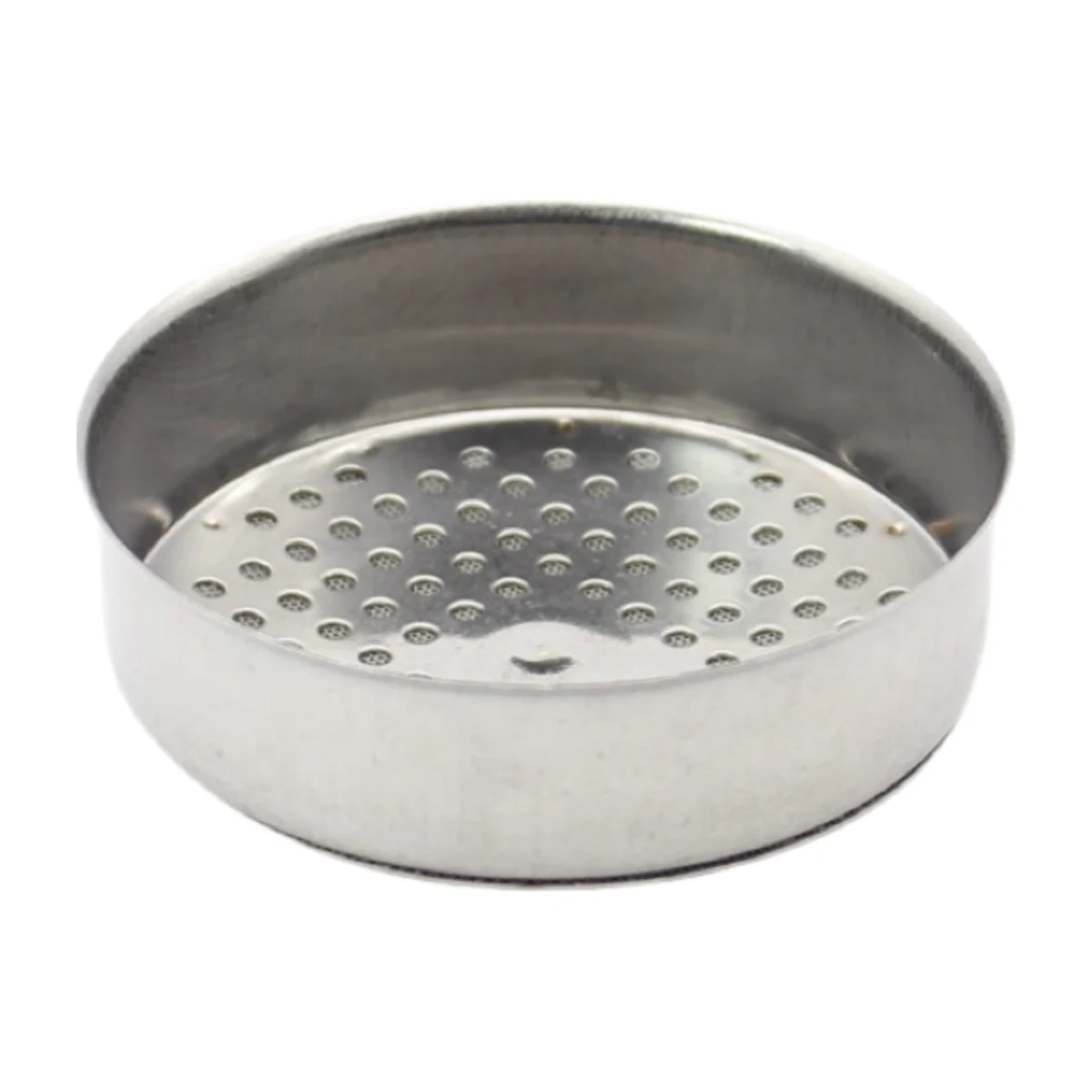

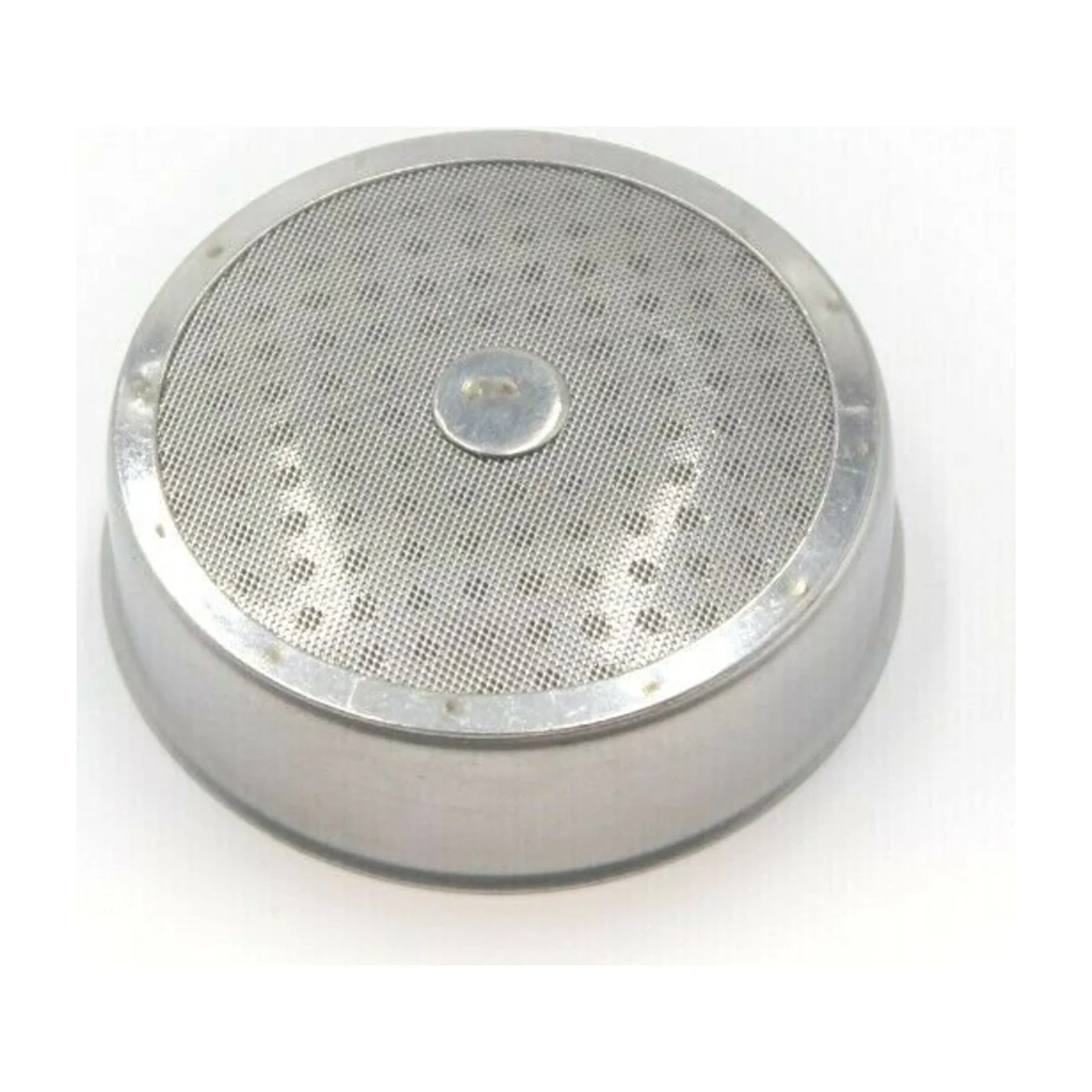

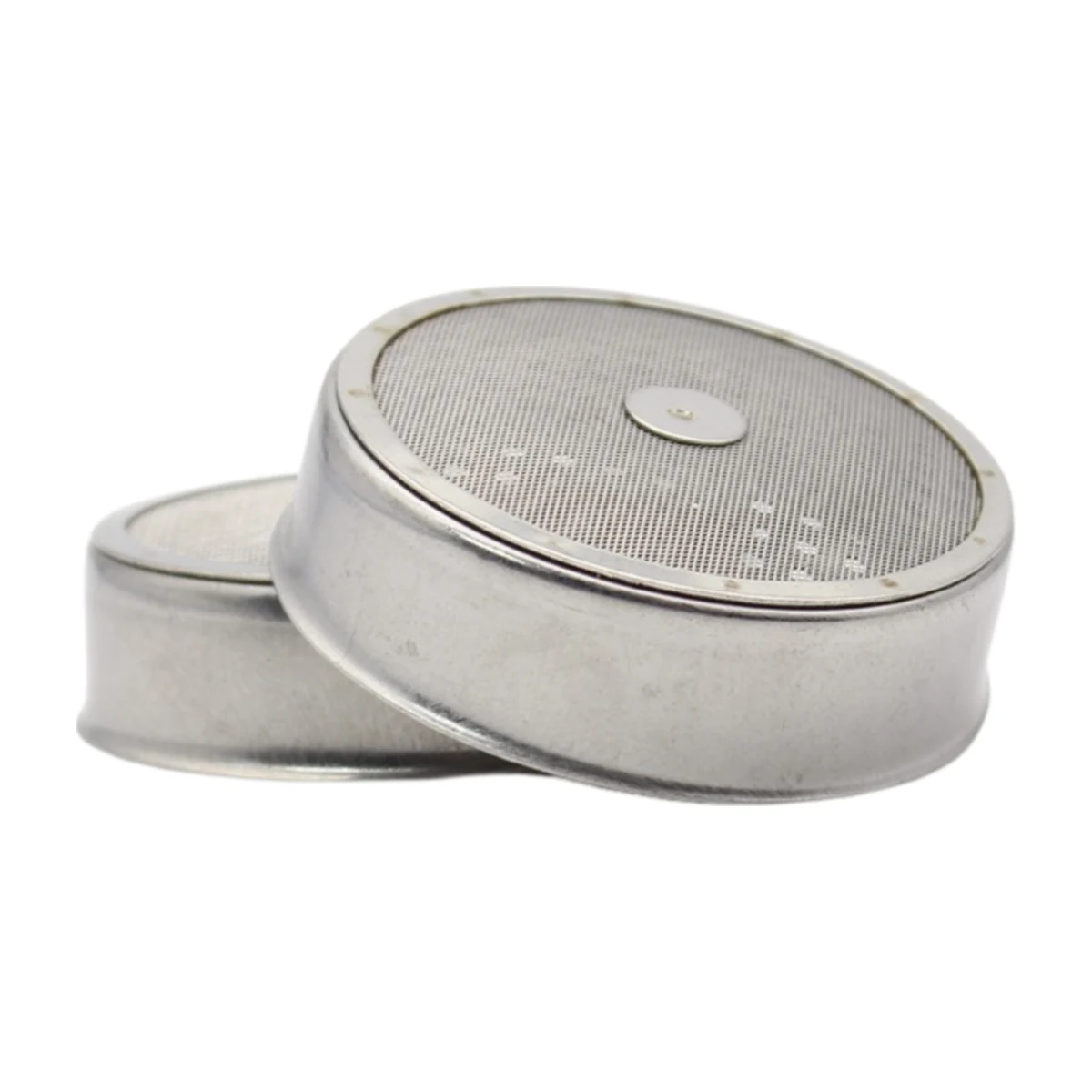

The shower screen spreads water from the group over the coffee bed, so a clogged or dented one leads to channelling and uneven shots. This E61 cup is 60 mm across, with a fine mesh face held by a riveted rim and a small solid disc in the centre. Behind the mesh sits a perforated plate that keeps it flat under pressure.

Design details

The centre disc stops water jetting straight down the middle of the puck, while the rim rivets keep the mesh taut. The cup simply presses into the group behind the gasket, with no screw needed. It is easy to brush clean and lasts well with regular back-flushing.

Specifications

• E61 60 mm Screen with Centre Disc Diameter: 60 mm
• E61 60 mm Screen with Centre Disc Group type: E61
• E61 60 mm Screen with Centre Disc Face: Fine mesh, centre disc
• E61 60 mm Screen with Centre Disc Backing: Perforated plate
• E61 60 mm Screen with Centre Disc Material: Stainless steel
• E61 60 mm Screen with Centre Disc Supplier code: PS1081016

Machines and matching parts

Listed for Bezzera, BFC, Bianchi, Brasilia, Casadio, ECM, Expobar and other E61 machines, plus Cimbali M27, Wega, Royal and Profitec. Change the seal at the same time with our 73×57×8 mm E61 gasket, or buy both in our screen and seal kit.

More spare parts are in store, and our Melbourne repair service can fit the screen for you.
