Group Head Gasket 66×36×16 mm – Saeco, Gaggia & La Pavoni

Stepped Group Gasket for Saeco, Gaggia and La Pavoni

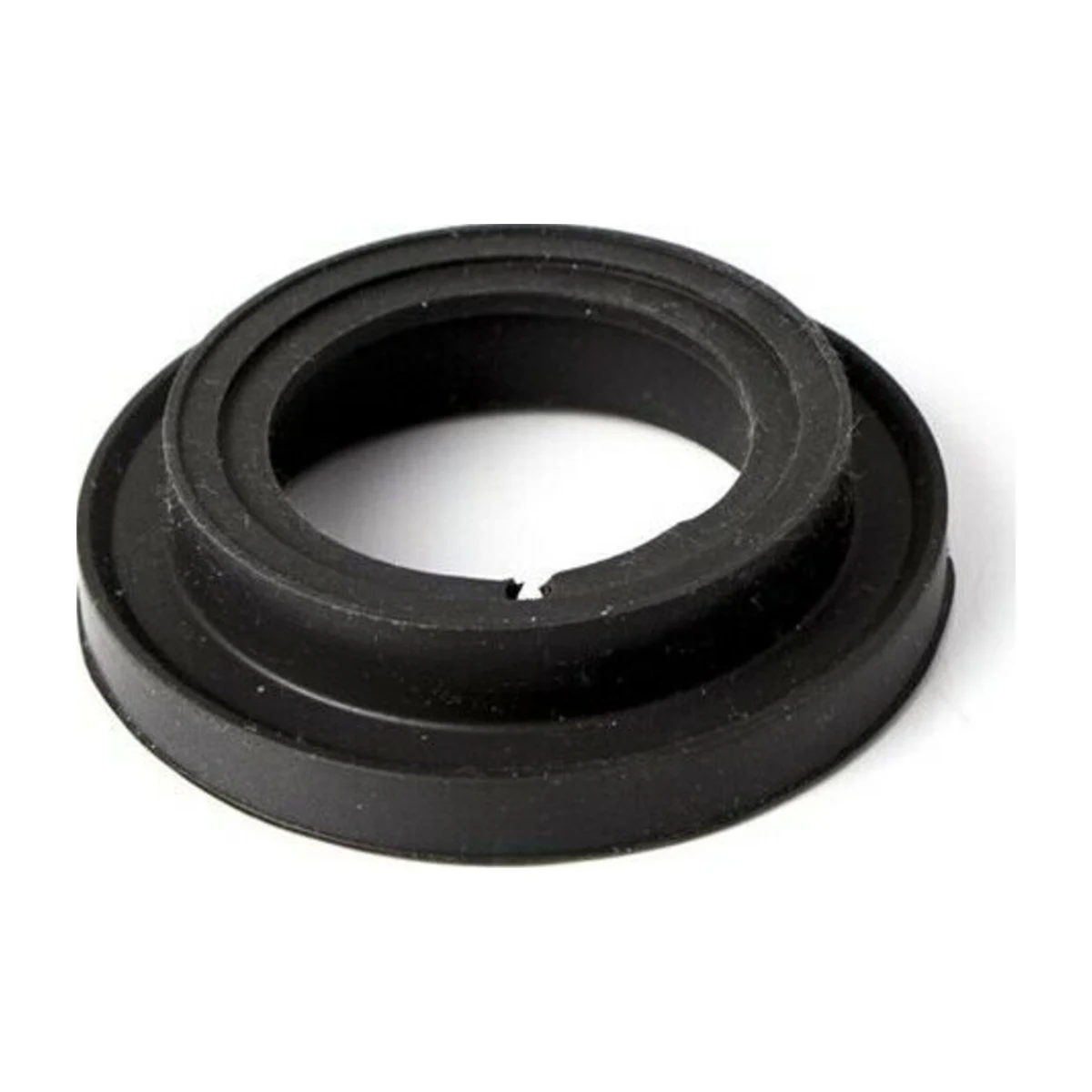

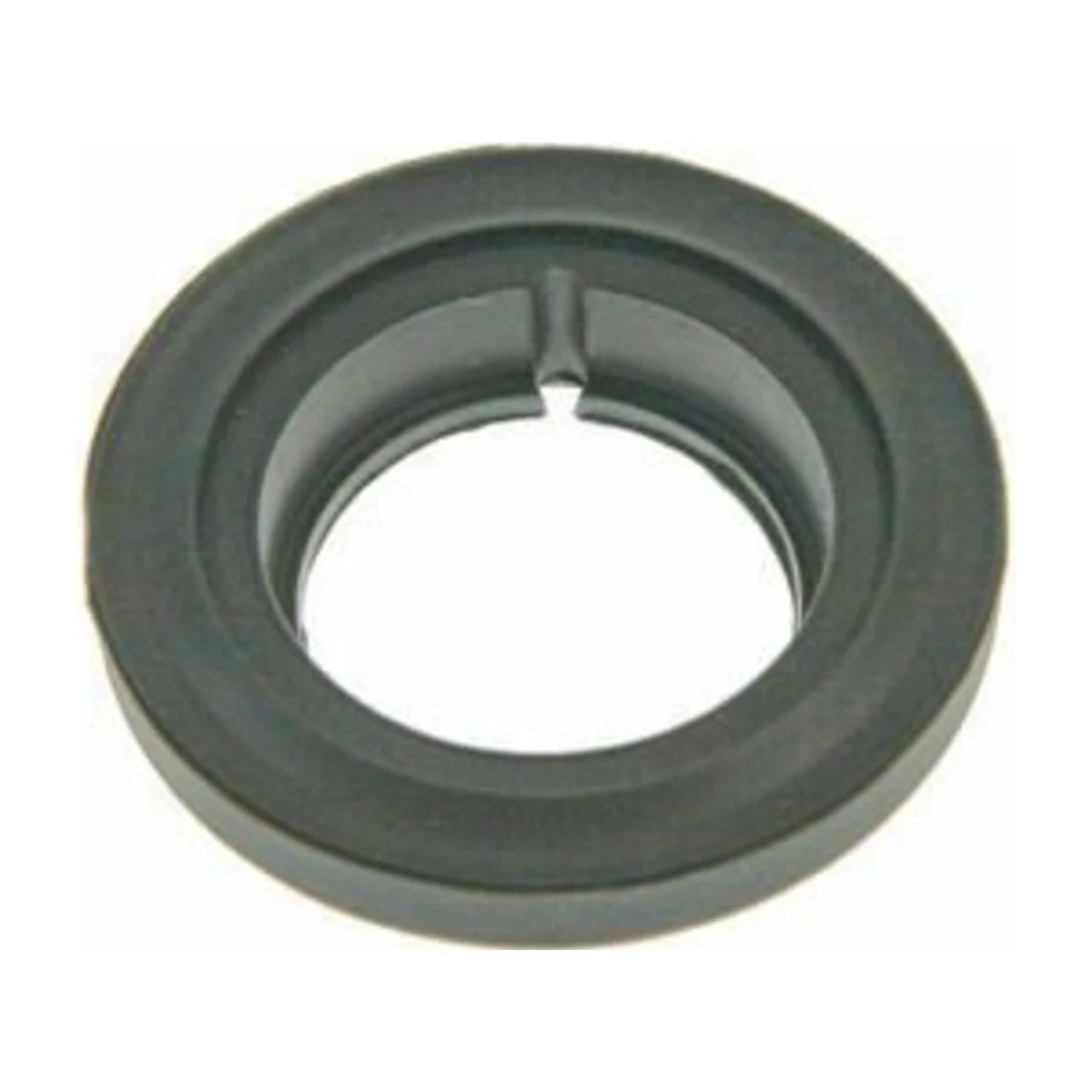

This is the tall, stepped seal used in the brew head of several older Saeco-built machines, such as the Via Venezia, Aroma and Classico. It measures 66 mm across, 36 mm through the centre and 16 mm high, so it is very different from a flat E61 ring. When it hardens, water and coffee start escaping around the portafilter handle.

What this seal does

The stepped profile locates in the group and gives the basket rim a firm surface to press against, holding full brew pressure. Heat makes the rubber brittle over time, which is why old seals often crumble on removal. Swapping it every 6 to 12 months keeps extraction pressure steady and crema consistent.

Specifications

• 66×36×16 mm Stepped Group Gasket Outside diameter: 66 mm
• 66×36×16 mm Stepped Group Gasket Inside diameter: 36 mm
• 66×36×16 mm Stepped Group Gasket Height: 16 mm
• 66×36×16 mm Stepped Group Gasket Profile: Stepped
• 66×36×16 mm Stepped Group Gasket Material: Black rubber
• 66×36×16 mm Stepped Group Gasket Weight: 27 g

Machines it suits

Listed for Saeco Via Venezia, Via Veneto, Aroma, Classico, Gran Crema, Magic, Poemia and Rio Vapore, Gaggia Carezza Deluxe and Gran Gaggia, and La Pavoni Espresso Plus and Euro Bar. If your old seal is flat, look at our 73×57×8 mm E61 group gasket instead, or browse all coffee machine spare parts.

Not keen on prising out a brittle seal? Our coffee machine repair service can fit it for you, or you can book a repair online.
