Bipolar Power Switch 16 A 250 V – for DeLonghi Icona & EC Series

Square Bipolar Switch for DeLonghi Pump Machines

DeLonghi’s manual pump machines, from the Icona to the EC680-era EC models, use a square push-in switch behind the power button. When it fails the machine may stay dead, flicker on and off, or only start when the button is held.

Switch Body Only

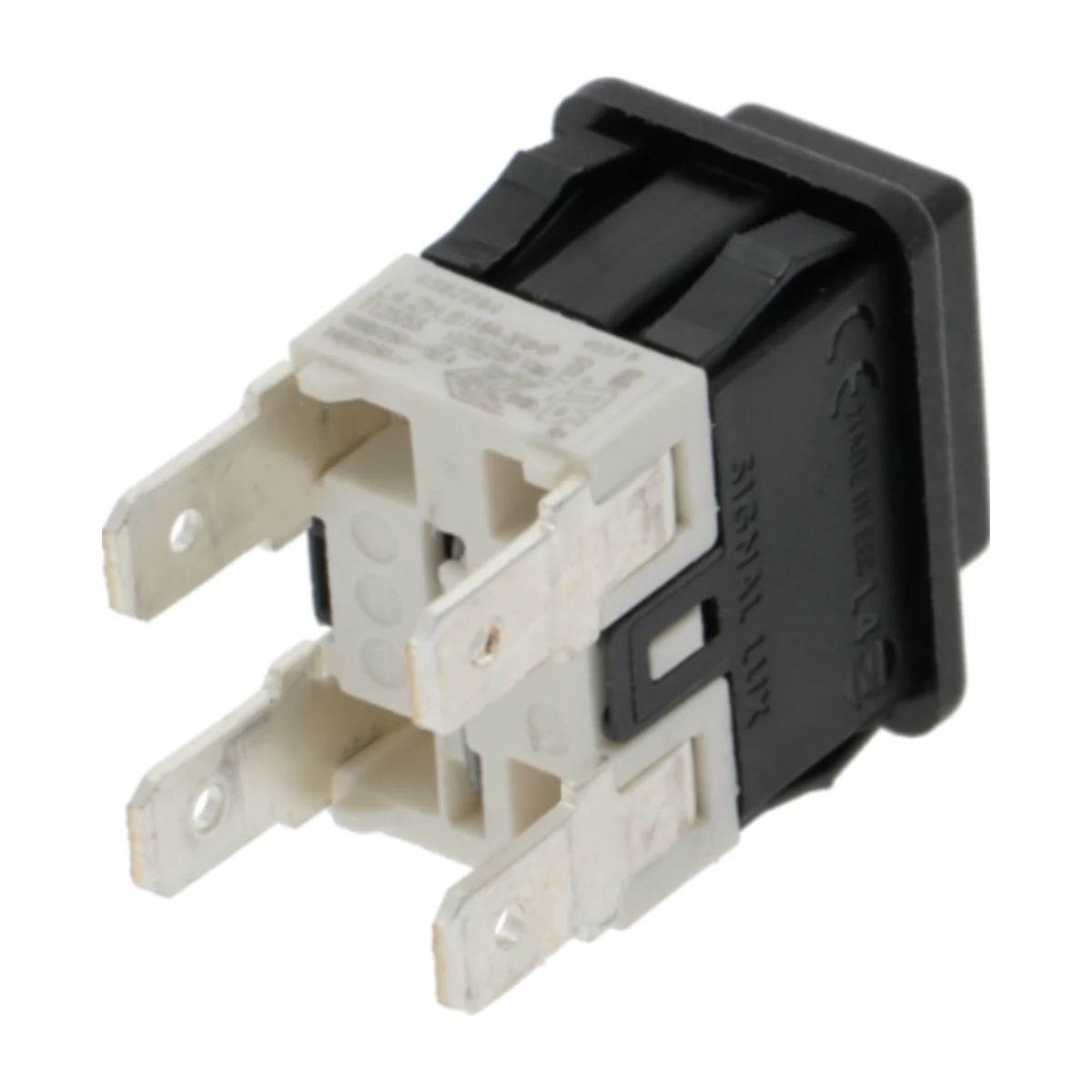

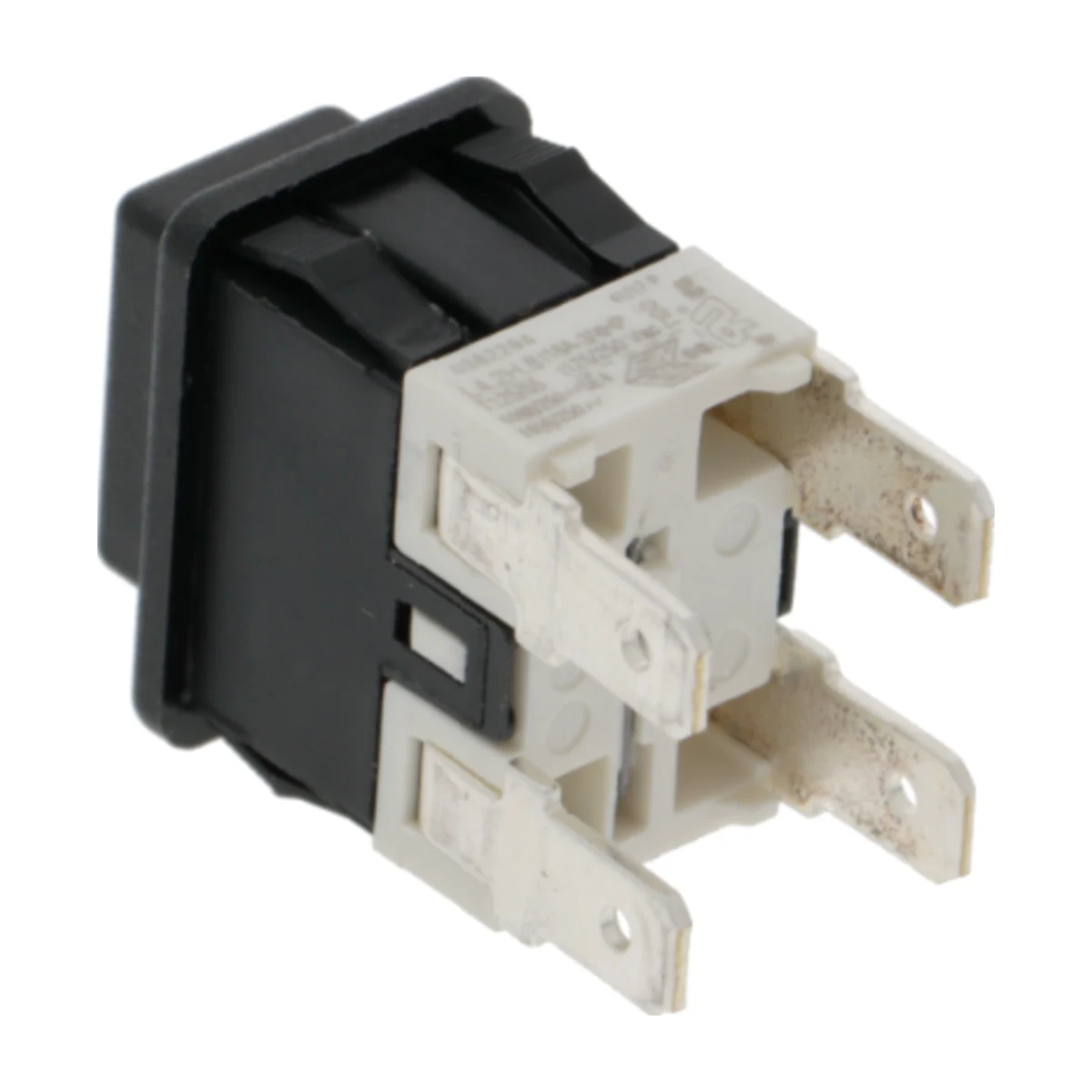

This is the square black switch body with a white base and four spade terminals, rated 16 A at 250 V and switching both poles. The photos show it without a cap, so plan to reuse the button from your machine.

Specifications

• 16 A Square Bipolar Switch Type: Bipolar (2-pole) switch body
• 16 A Square Bipolar Switch Rating: 16 A, 250 V
• 16 A Square Bipolar Switch Terminals: 4 × spade
• 16 A Square Bipolar Switch Colour: Black / white
• 16 A Square Bipolar Switch Button cap: Not shown – reuse original

Machines Listed

DeLonghi Icona ECO310 and ECO311, Icona Vintage ECOV310 and ECOV311, EC250, EC271, EC300M, EC330S, EC610, EC650, EC700, EC710, EC750, ECZ351 and the BCO combi range; plus the Gran Gaggia. For DeLonghi bean-to-cup machines see the bipolar rocker switch.

Work on mains wiring should be done by a qualified person; our coffee machine repair service can fit it for you. Browse more spare parts.
