Resettable Thermostat 165 °C – M4 Thread, 16 A (Silvia, Lelit)

Manual-Reset Safety Thermostat, 165 °C

This is a safety thermostat: if the boiler runs dry or a pressurestat sticks, it trips at 165 °C and cuts power to the element. It must then be reset by pressing the black button on top. If your machine goes dead and comes back after a reset, the cause still needs finding.

Mounting and reset

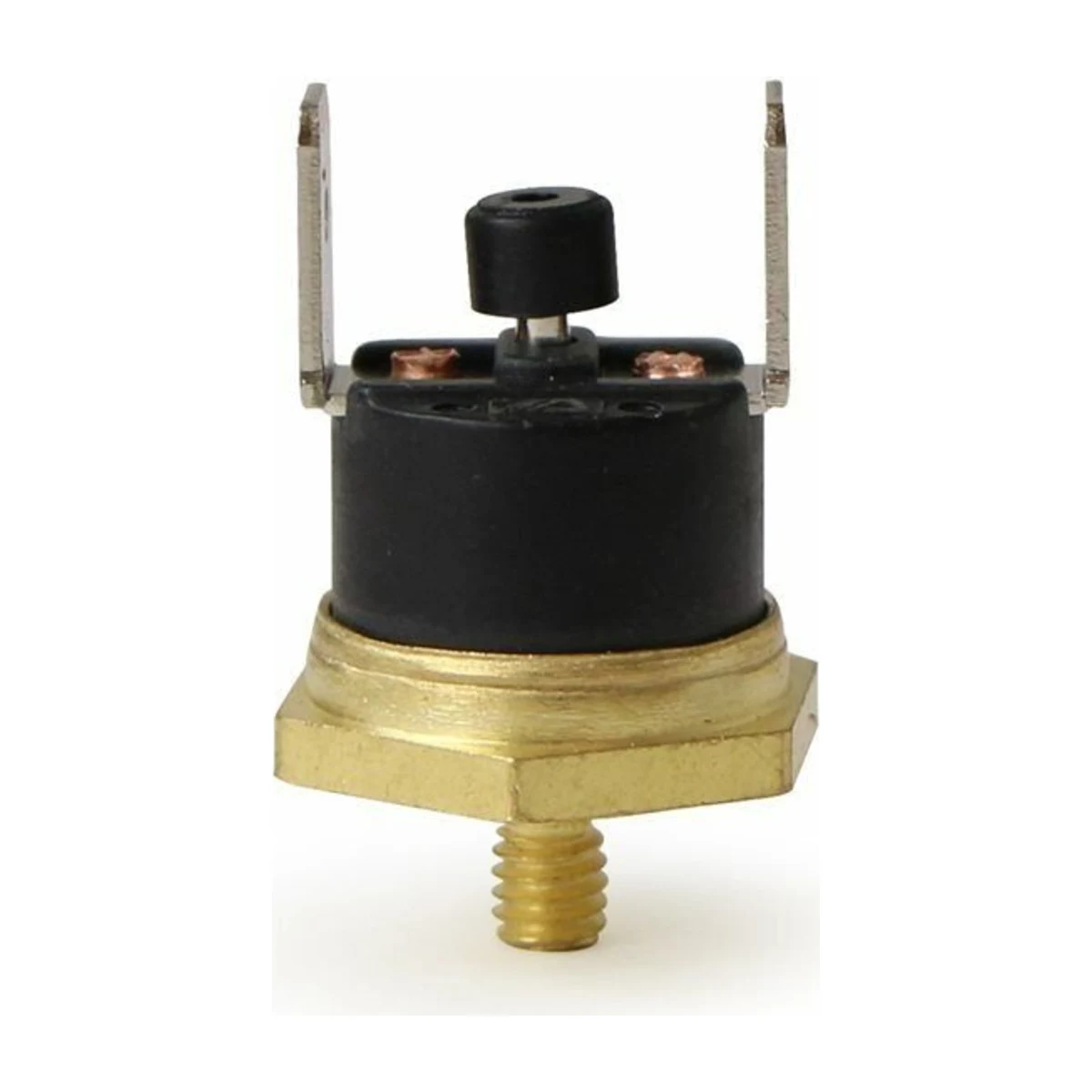

The brass hex base has an M4 threaded stud that screws into the boiler, and the two vertical spade terminals take the existing wiring. The reset button is easy to reach, which is handy when diagnosing. Never bypass a safety thermostat.

Specifications

• 165 °C Resettable Thermostat M4 Trip temperature: 165 °C
• 165 °C Resettable Thermostat M4 Reset: Manual push button
• 165 °C Resettable Thermostat M4 Mounting: M4 stud, brass hex base
• 165 °C Resettable Thermostat M4 Rating: 16 A 250 V
• 165 °C Resettable Thermostat M4 Height: approx. 20 mm body
• 165 °C Resettable Thermostat M4 Ref. number: 1443002 (supplier)

Machines it suits

The old text names Rancilio Silvia, Audrey, Betsy and Nancy, Lelit PL41, PL042, PL60 and PL62 models, Pavoni Casabar and Domus Bar, Isomac Venus, Elektra Mini Verticale and Vibiemme Domobar Junior and Super. Vibiemme owners may also need the Domobar infusion valve piston. A sticking pressurestat is a common reason this trips.

Because a trip points to another fault, our Melbourne repair technicians can test the machine and fit it for you. Book a repair online.
