On/Off Toggle Switch 16 A 250 V – Two Pole, for Expobar, Rocket

Two-Pole Toggle Switch, 16 A

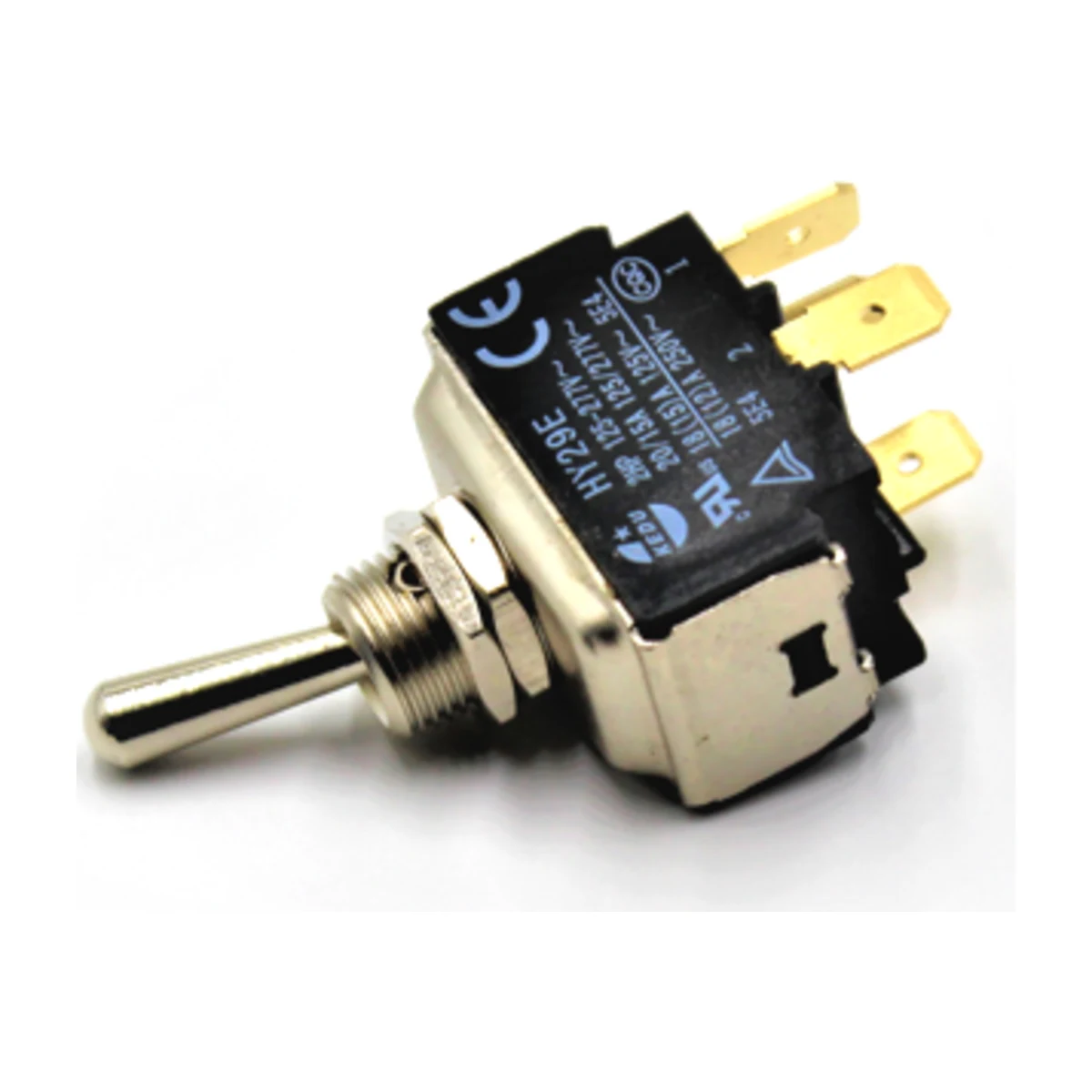

A two-pole switch breaks both active and neutral when the machine is turned off, which is why many commercial and prosumer machines use one. This HY29E toggle is rated 16 A at 250 V, with a metal case, chrome lever and threaded bush. A failed switch means the machine will not power on or cuts out.

Heavier build

It has a metal shell and six spade terminals on the back, two rows of three. Label each wire before removing the old switch so they go back in the same positions. The bush mounts through a round panel hole and is held with a nut.

Specifications

• Toggle Power Switch 16 A – Two Pole Model: HY29E
• Toggle Power Switch 16 A – Two Pole Poles: Two pole, on/off
• Toggle Power Switch 16 A – Two Pole Rating: 16 A 250 V
• Toggle Power Switch 16 A – Two Pole Terminals: 6 spade
• Toggle Power Switch 16 A – Two Pole Size: approx. 55 × 35 × 25 mm
• Toggle Power Switch 16 A – Two Pole Ref. number: PS3319529 (supplier)

Machines it suits

The old listing names Expobar, Rocket and Rosinox, but not specific models, so compare the terminal layout with your old switch. For two-terminal switches see the single-pole 15 A toggle, or the black 16 A power switch.

Mains wiring should be left to a qualified person; our coffee machine repair service can fit it for you. See more spare parts.
