Ulka EP5 Vibration Pump 24 V 48 W – Low-Voltage Espresso Pump

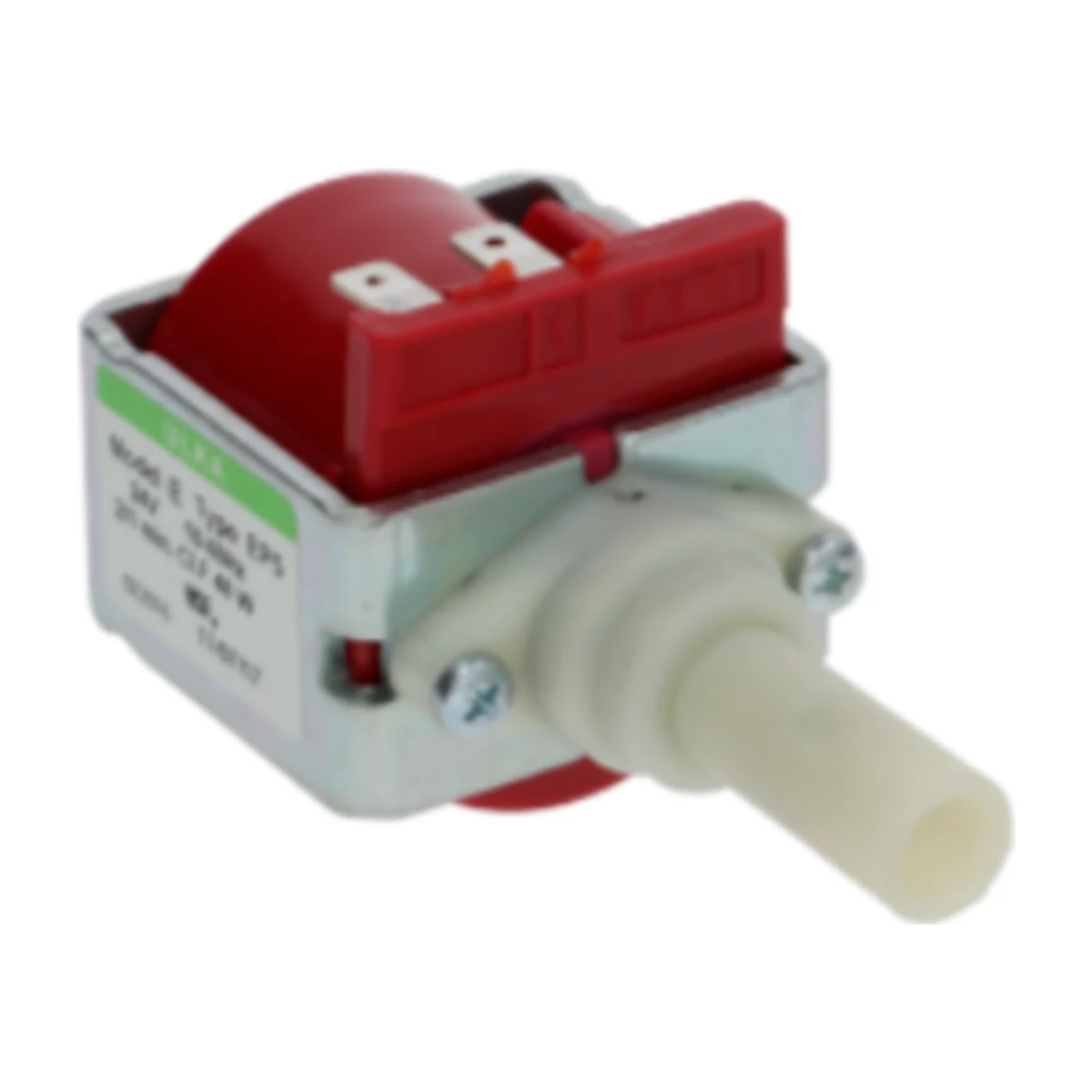

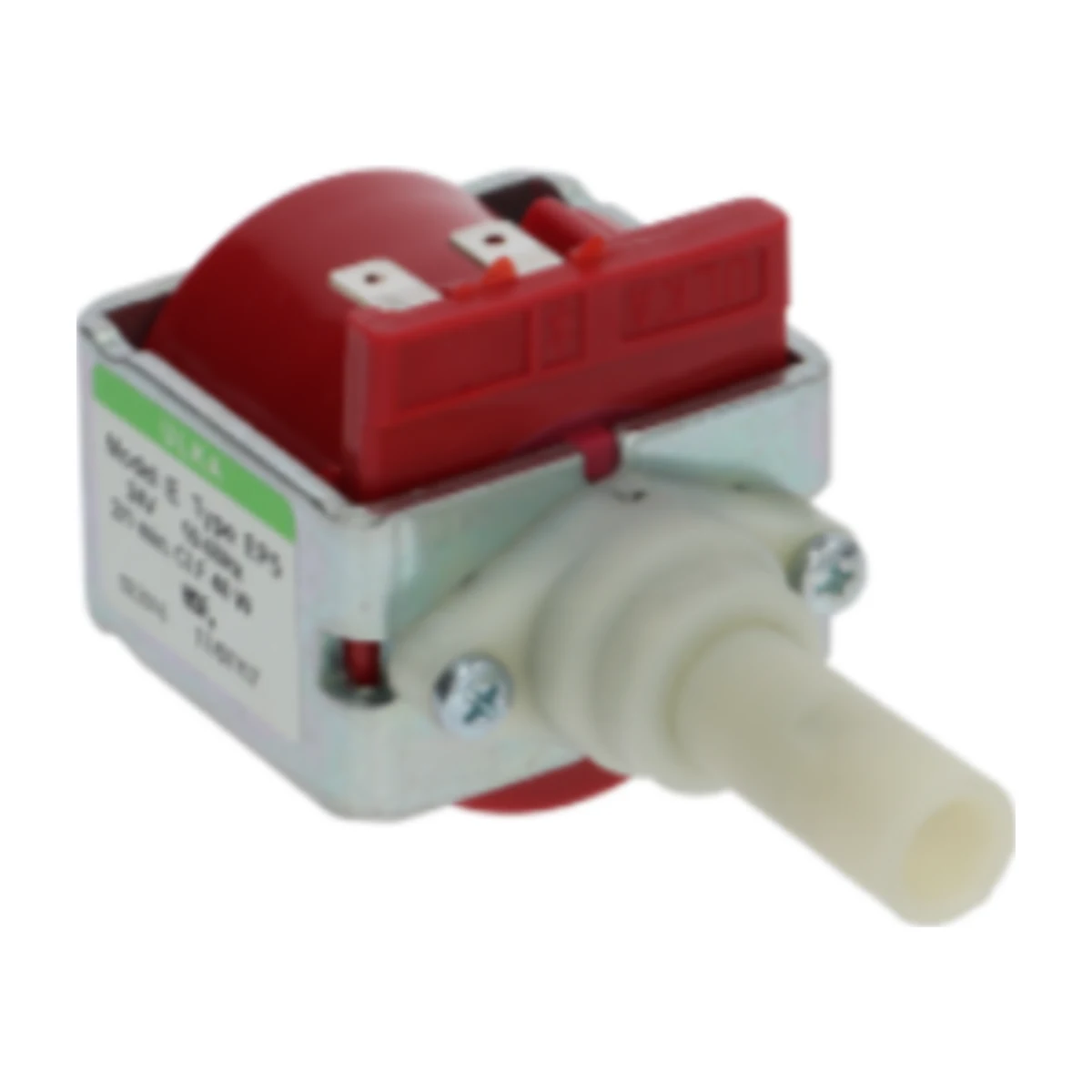

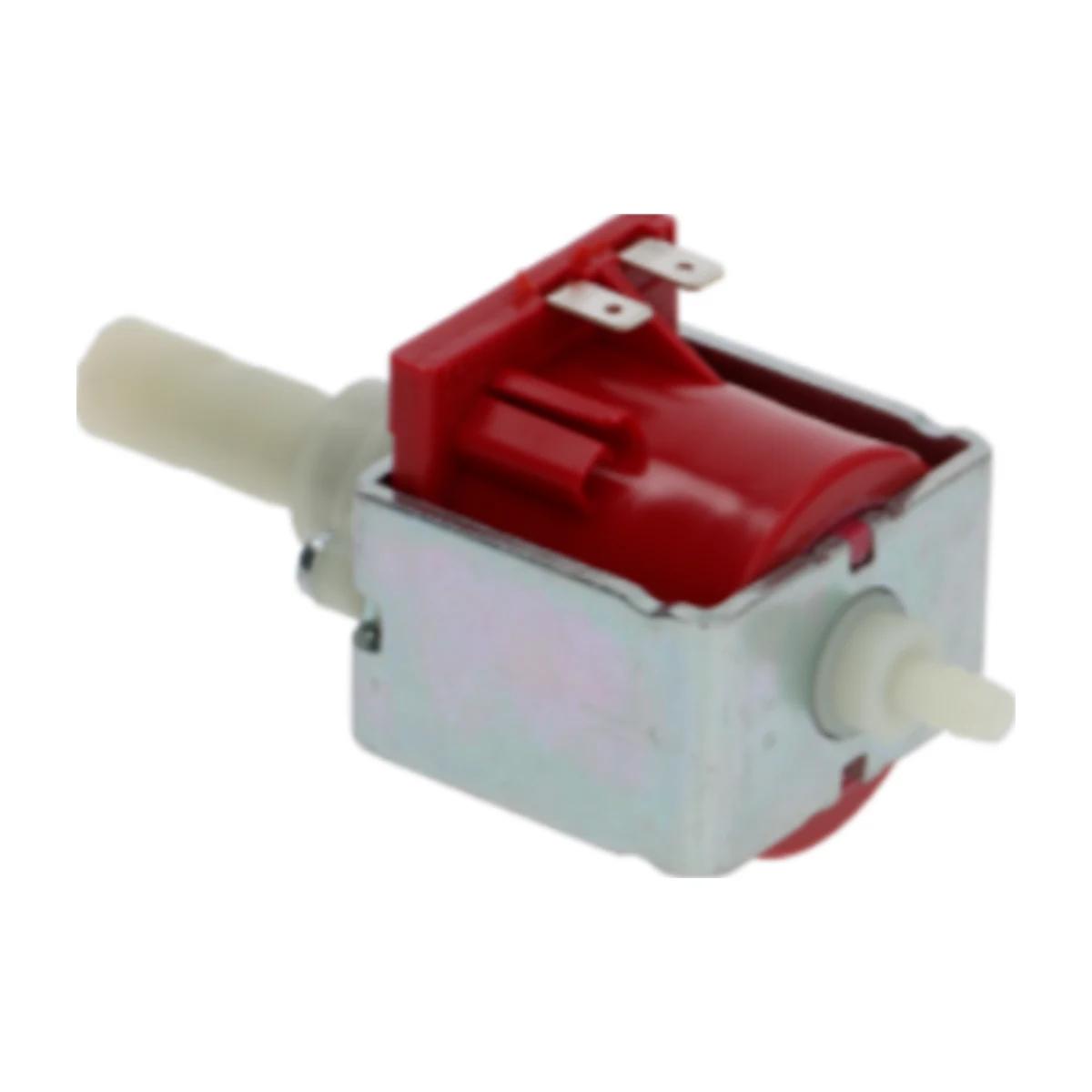

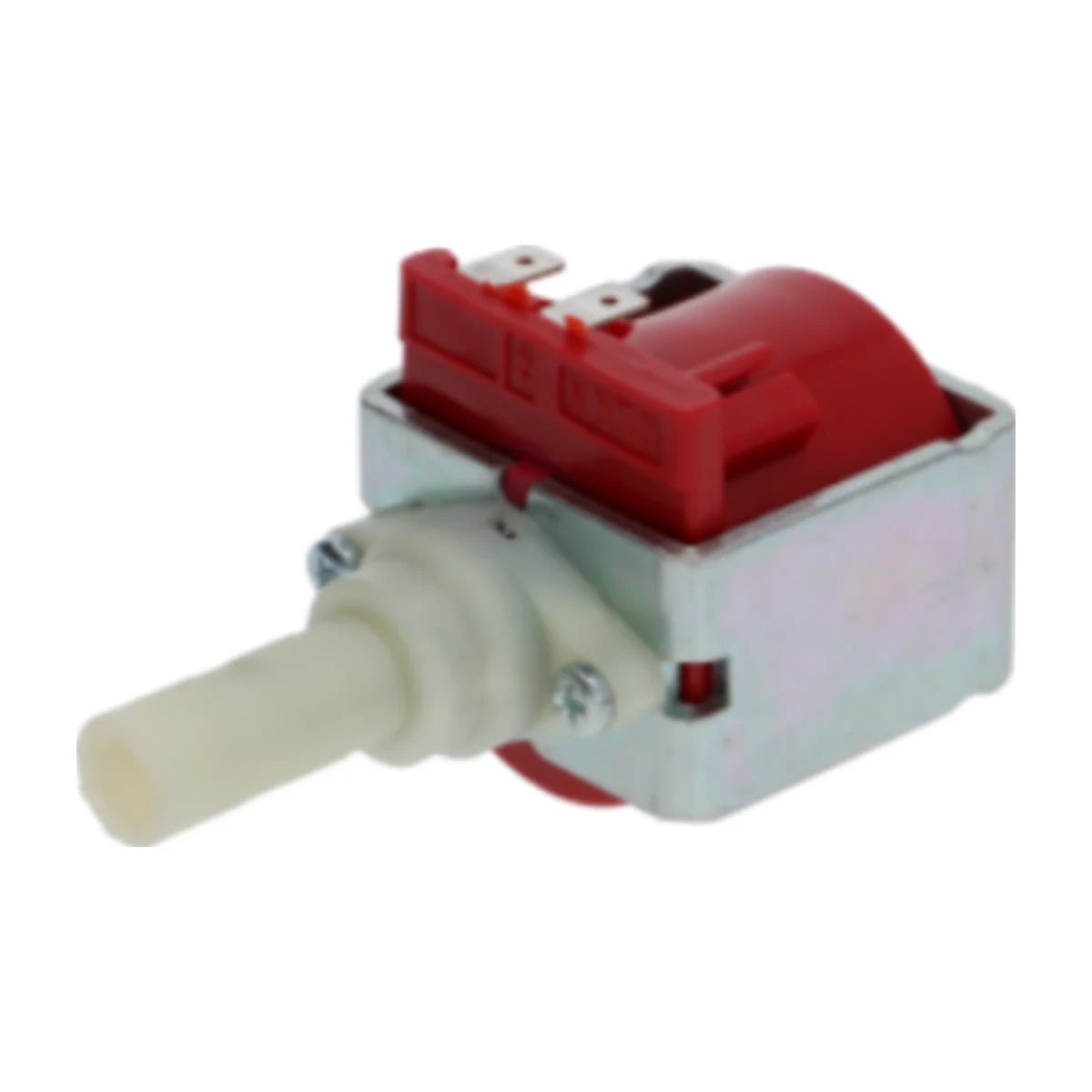

Ulka EP5 24 V Vibration Pump

The EP5 is the small Italian vibration pump found in a huge number of espresso and vending machines. This listing is the 24 V, 50 Hz version, which is used in machines that run the pump from a low-voltage control board rather than straight from mains power.

Check the Voltage First

Ulka makes the EP5 in several voltages, and they are not interchangeable. Read the label on your old pump: if it says 230 V you need a different pump. This one is rated 48 W with a maximum pressure of 15 bar and has the diode built in.

Specifications

• Ulka EP5 24 V Model: Ulka EP5
• Ulka EP5 24 V Voltage: 24 V, 50 Hz
• Ulka EP5 24 V Power: 48 W
• Ulka EP5 24 V Maximum pressure: 15 bar
• Ulka EP5 24 V Fittings: 1/8″ and ø 6 mm
• Ulka EP5 24 V Diode: Integrated (1N4007)
• Ulka EP5 24 V Terminals: 6.3 × 0.8 mm spade
• Ulka EP5 24 V Made in: Italy

Machines That Use the 24 V EP5

The supplier lists 24 V versions of machines from Alice Club, Ascaso, Atel, Brasilia, Gaggia, Gorenje and Saeco. For standard home machines see the Ulka EP5 230 V pump instead.
