Boiler Safety Valve 1/2″ M 1.8 bar – CE (PED), Nostral

1/2″ Boiler Safety Valve, 1.8 bar

The safety valve is the last line of defence on a steam boiler. If the pressure switch sticks and pressure keeps climbing, this valve opens at its set point and vents steam before the boiler is put at risk.

Marked and Certified

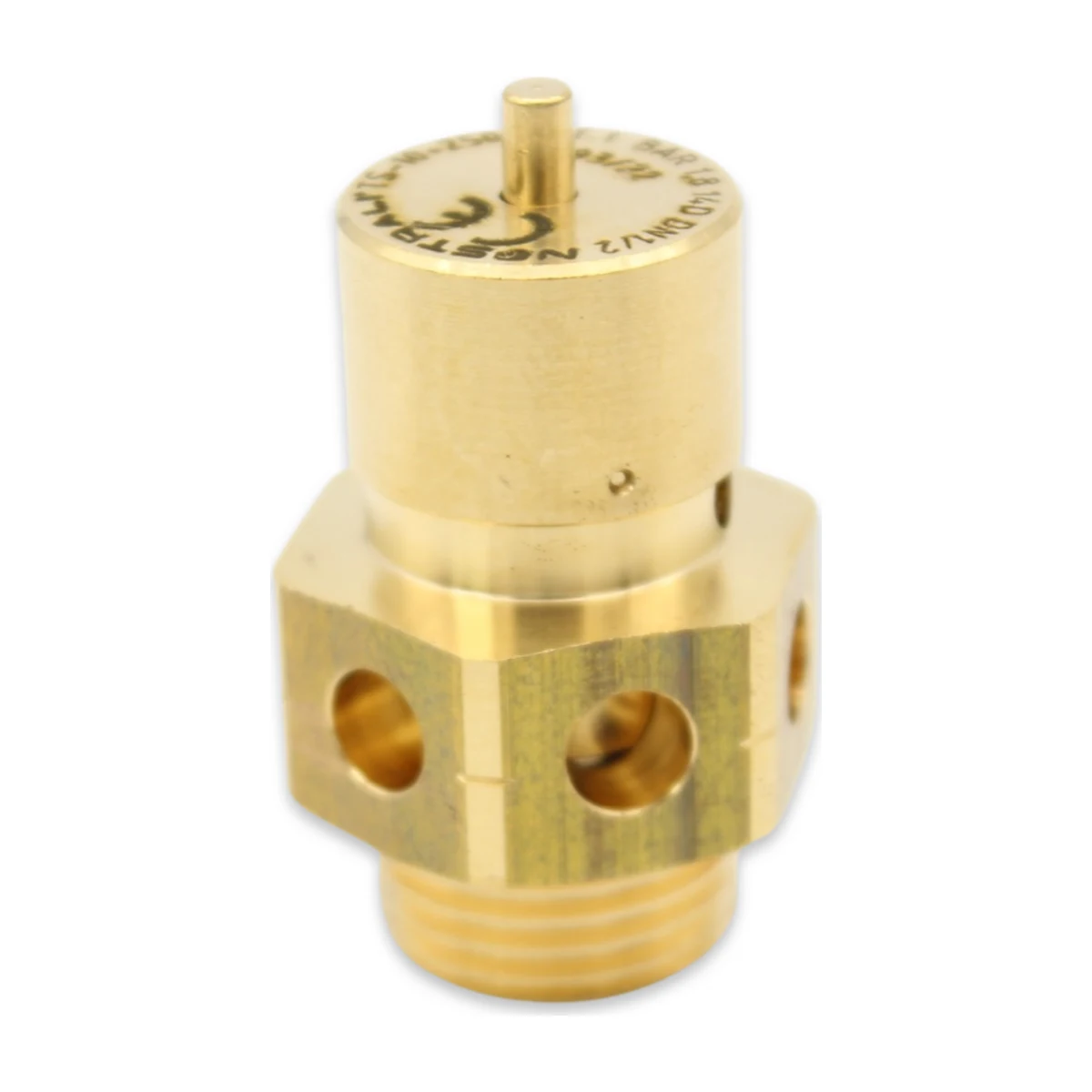

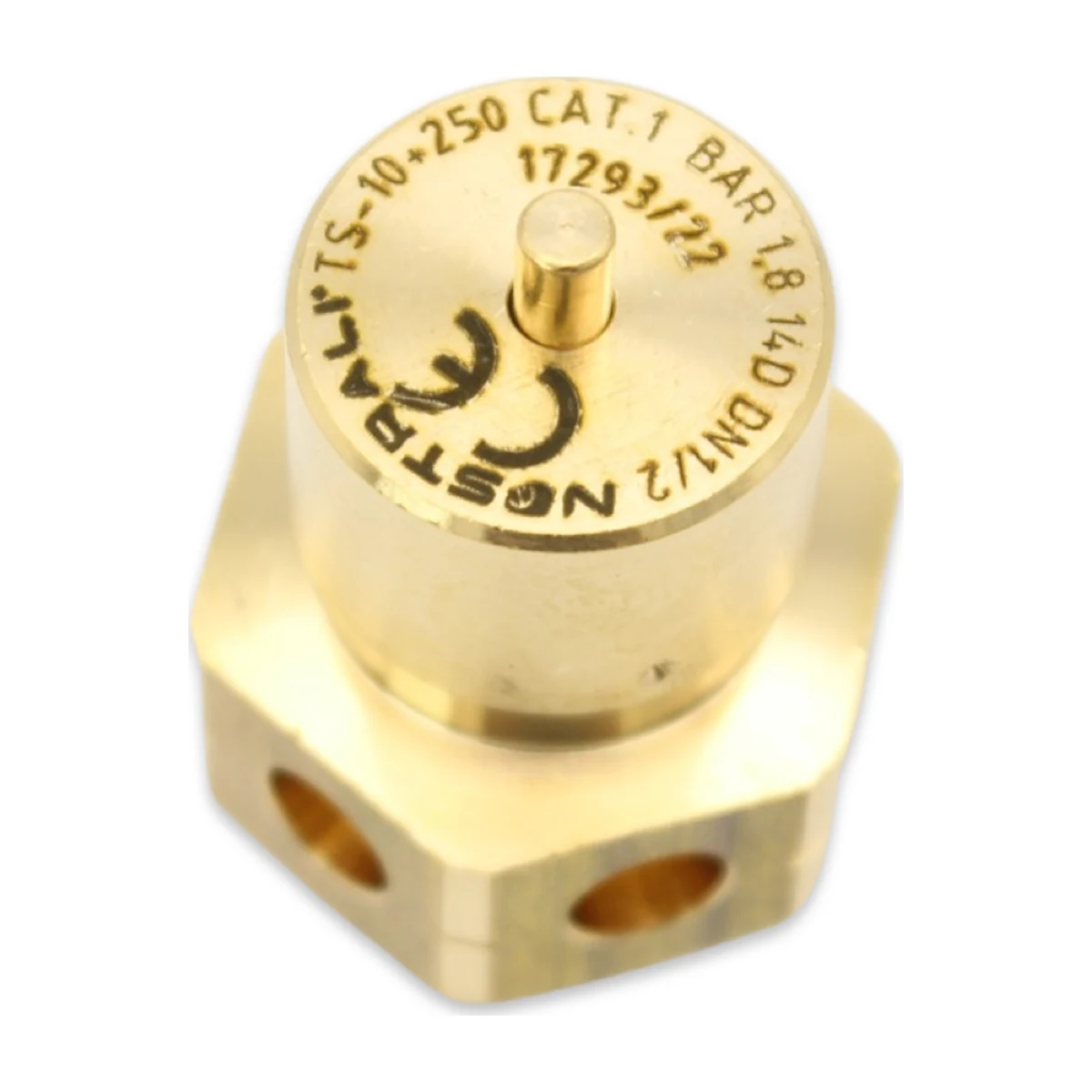

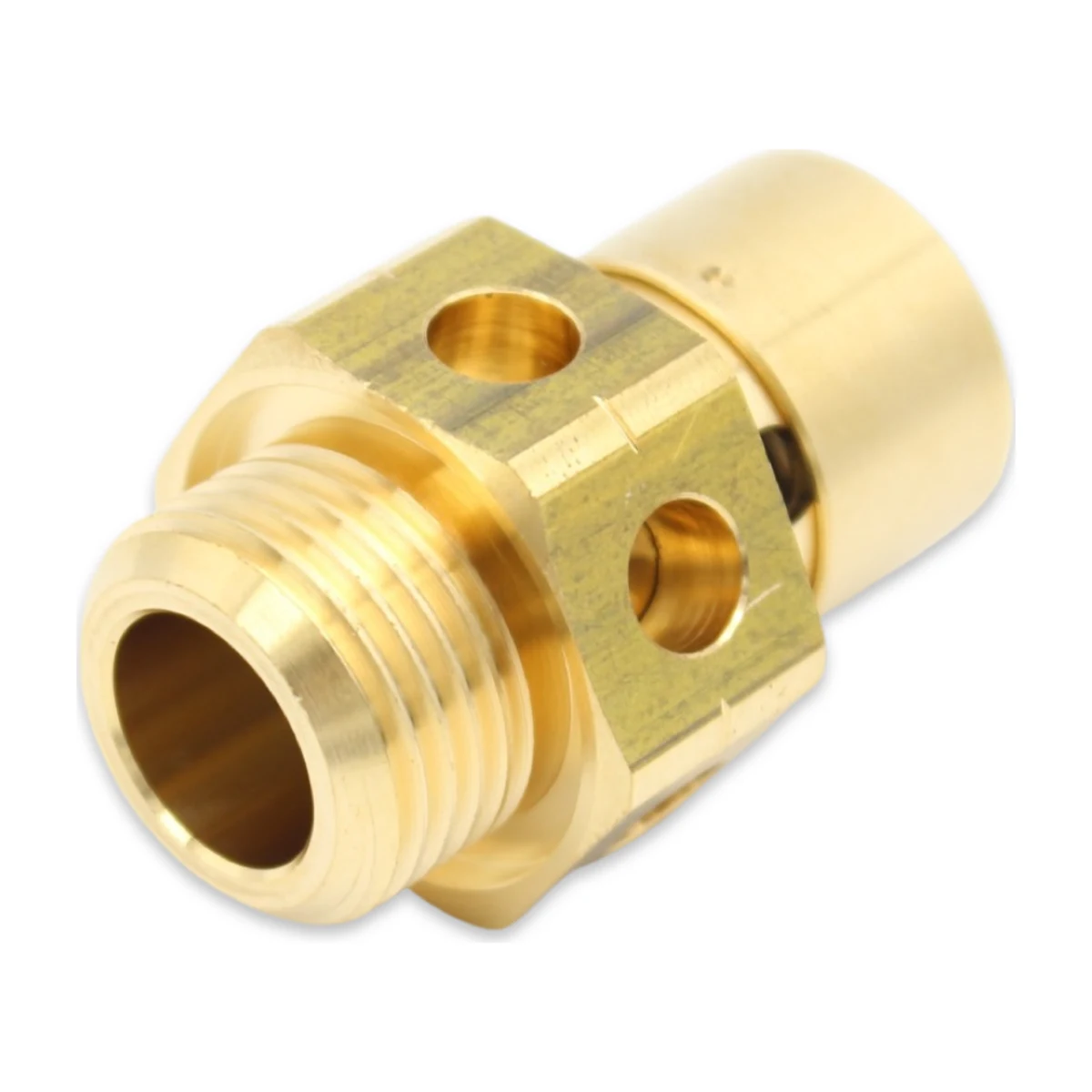

The cap is stamped Nostral, CE, CAT. 1, BAR 1.8, DN 1/2 and TS -10÷250 °C, so the rating can be checked at a glance. The body is solid brass with side vent holes and a test pin on top.

Specifications

• Nostral 1/2″ 1.8 bar Set pressure: 1.8 bar
• Nostral 1/2″ 1.8 bar Thread: 1/2″ male
• Nostral 1/2″ 1.8 bar Certification: CE, PED Category 1
• Nostral 1/2″ 1.8 bar Temperature range: -10 to 250 °C
• Nostral 1/2″ 1.8 bar Material: Brass
• Nostral 1/2″ 1.8 bar Brand: Nostral

Choosing the Right Valve

Always replace like for like: the thread and the pressure stamped on your old valve must match. Boilers with a 3/8″ port may need the 3/8″ 1.9 bar safety valve instead.

A valve that keeps venting usually points to a pressure switch fault, so have the machine checked. Our coffee machine repair team can fit it for you, or book a repair.
