Group Head Seal for Breville BES810, BES840, BES860, BES870

Group Head Seal for 54 mm Breville Machines

On the Barista Express and its 54 mm siblings, the group seal is the most common wear part. Water dribbling down the outside of the portafilter, or a handle that swings past the six o’clock position, means it is time for a new one.

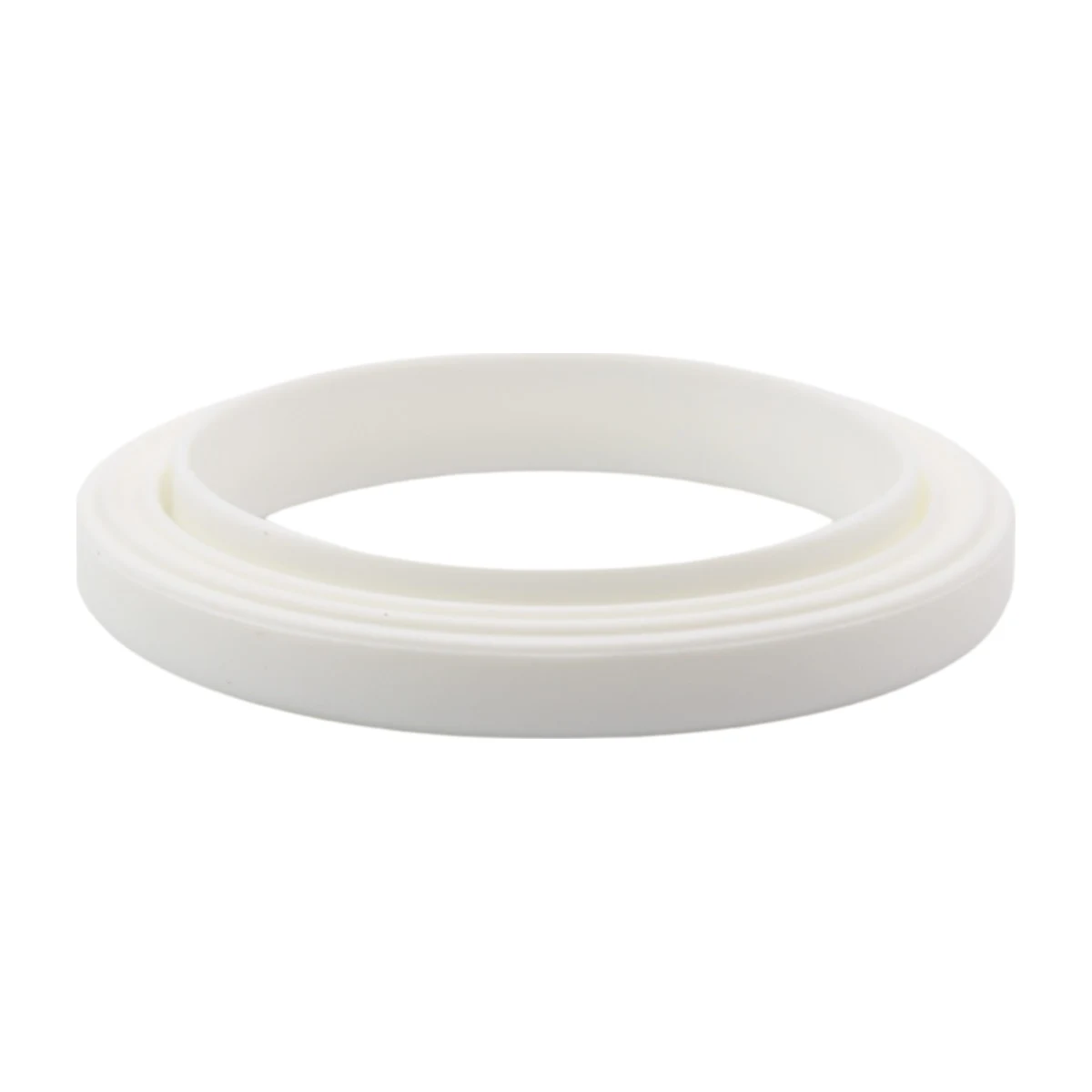

Stepped Silicone Profile

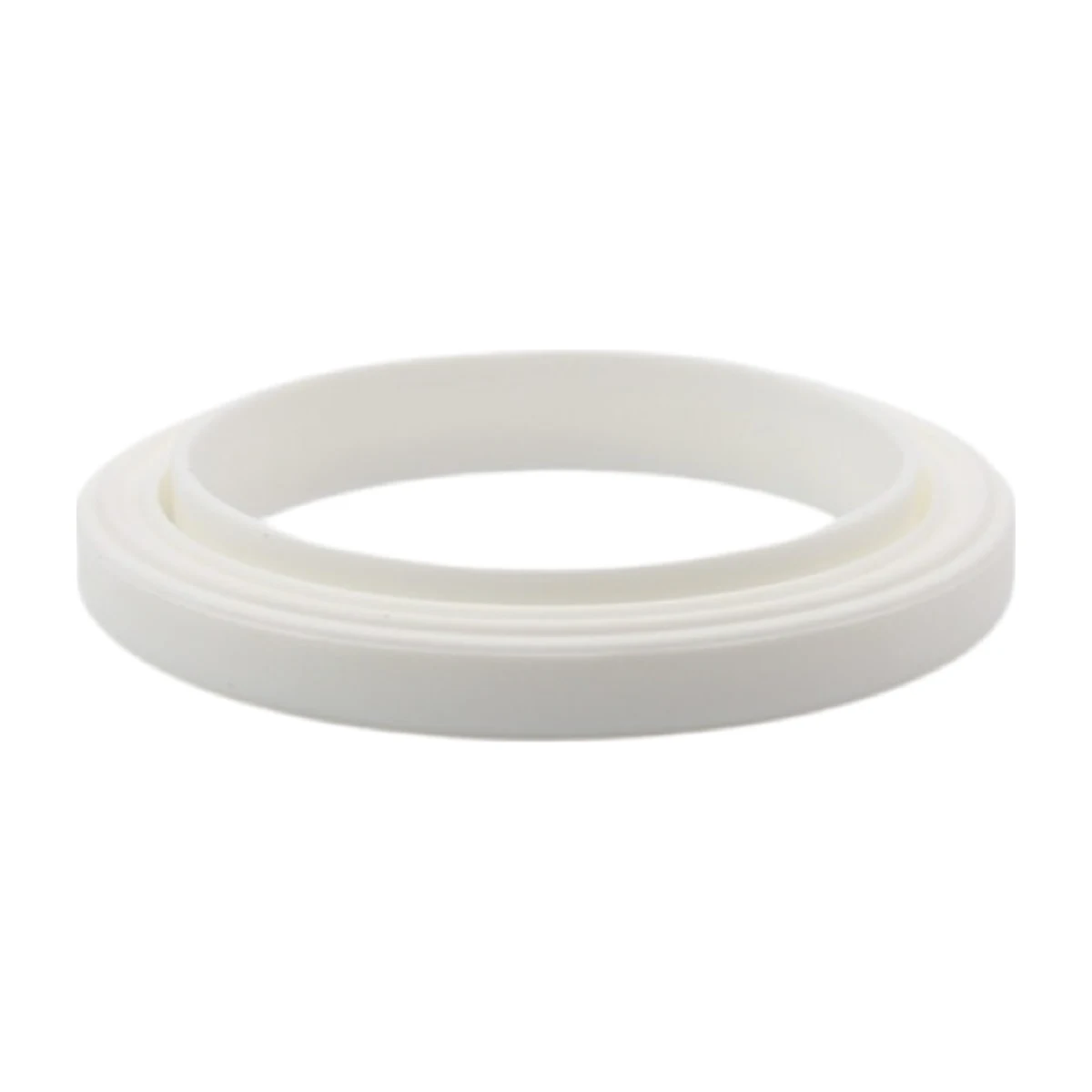

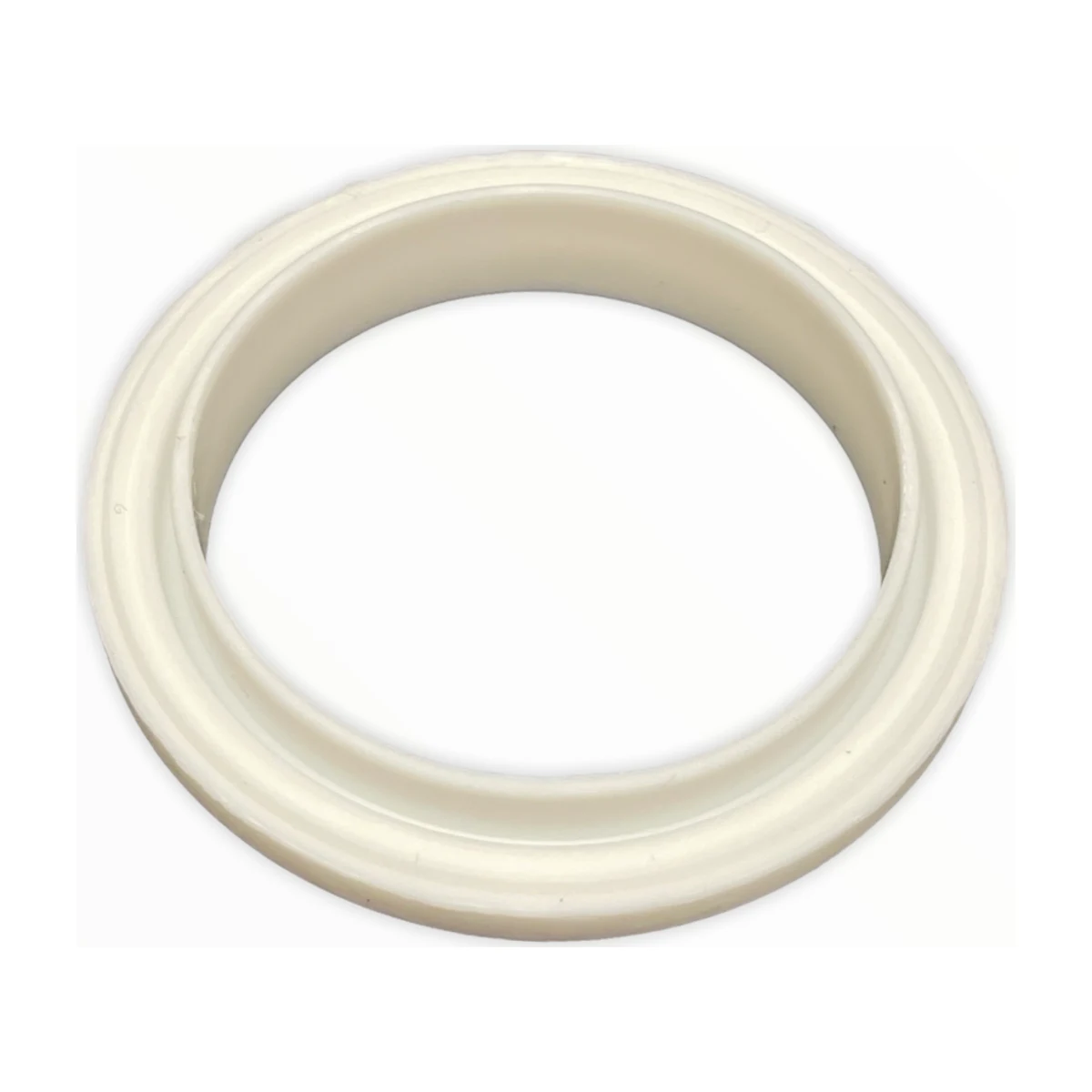

This seal is moulded in cream silicone with the stepped profile of the original. The supplier quotes about 66 mm across and 10 mm tall; silicone stays supple longer than rubber in a hot group.

Specifications

• Breville BES870 Group Seal Fits: Breville BES810, BES840, BES860, BES870
• Breville BES870 Group Seal Portafilter size: 54 mm
• Breville BES870 Group Seal Outside diameter (supplier): approx. 66 mm
• Breville BES870 Group Seal Height (supplier): approx. 10 mm
• Breville BES870 Group Seal Material: Silicone
• Breville BES870 Group Seal Colour: Cream

Fitting Tips

Remove the shower screen, pick out the old seal, clean the groove and push the new one in evenly, step facing up. The Dual Boiler uses the BES900–BES990 seal instead, and loose hose joints take the Breville O-ring pack.

Book it in with our coffee machine repair team and we can fit it for you, then keep the group clean with regular back-flushing.
