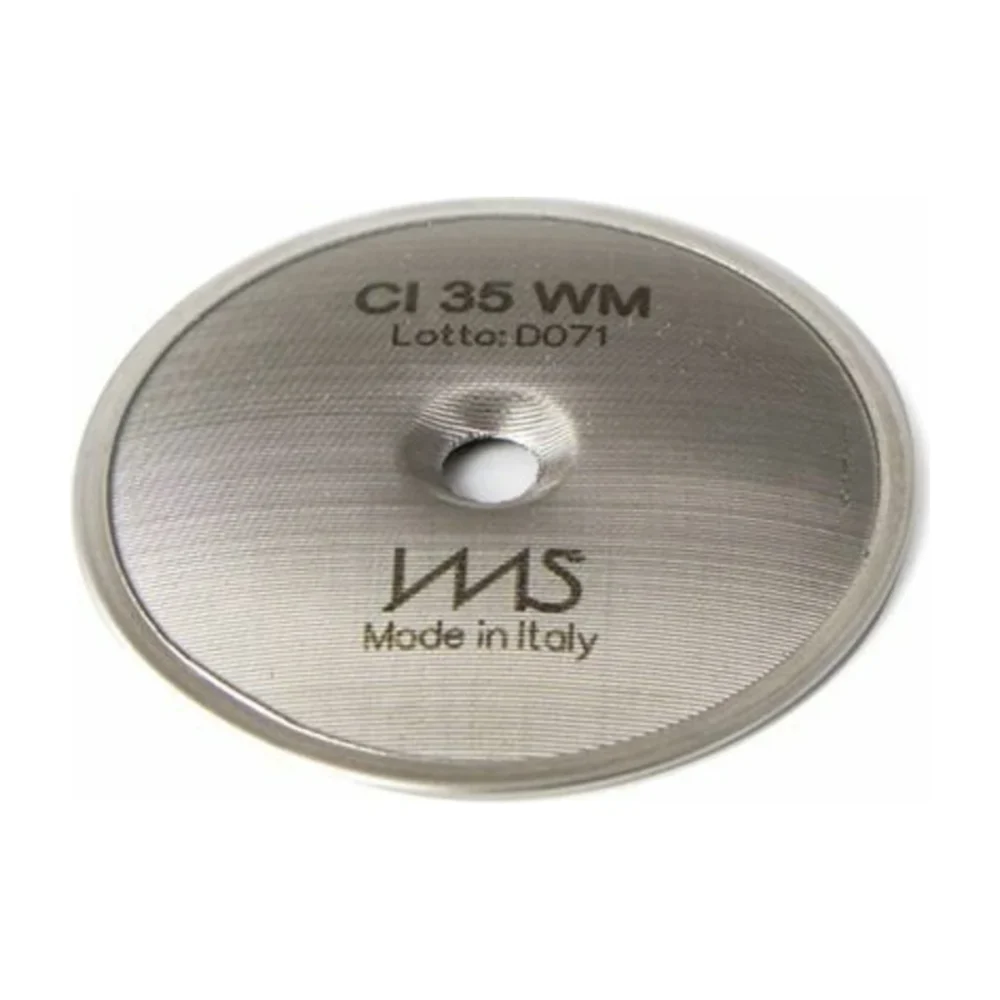

IMS Precision Shower Screen 51.5 mm – CI 35 WM, Flat

IMS CI 35 WM Precision Screen, 51.5 mm

This flat IMS screen is marked CI 35 WM and replaces the 51.5 mm screen held by a centre screw on many commercial groups. A 35 µm wire mesh on the face gives very fine filtration, while the drilled plate behind it spreads water evenly. It is a precision upgrade over basic pressed screens.

Specification

The plate carries 119 holes of 2 mm with a 5 mm countersunk centre hole for the screw. Because the mesh is very fine, it keeps grounds out of the group and resists clogging between cleans. Tighten the screw just enough to hold it flat.

Specifications

• IMS CI 35 WM 51.5 mm Screen Diameter: 51.5 mm
• IMS CI 35 WM 51.5 mm Screen Model: IMS CI 35 WM
• IMS CI 35 WM 51.5 mm Screen Mesh: 35 µm wire mesh
• IMS CI 35 WM 51.5 mm Screen Holes: 119 × 2 mm
• IMS CI 35 WM 51.5 mm Screen Centre hole: 5 mm
• IMS CI 35 WM 51.5 mm Screen Material: AISI 304 stainless steel
• IMS CI 35 WM 51.5 mm Screen Made in: Italy

Fit check

The old listing named Astoria, Bezzera, BFC, Brasilia, Carimali, Cimbali, Elektra, Faema, Fiorenzato, Wega and others, but group designs vary, so check your old part’s size and fixing first. Prefer an integrated membrane? See our IMS CI 200 IM 51.5 mm screen. For E61 groups, try our IMS E61 35 WM screen.

Our repair service can fit it for you.
