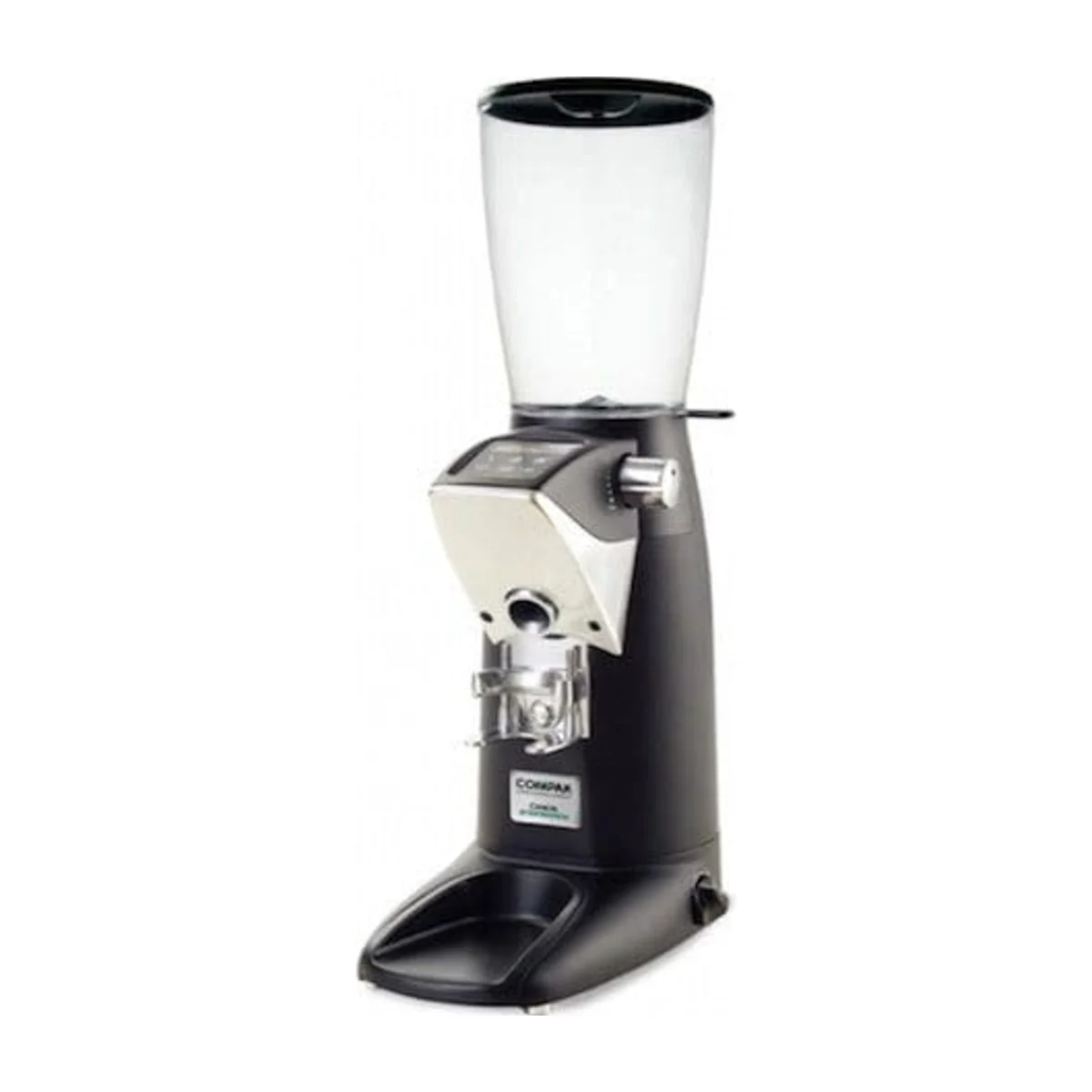

Compak F10 Conic OD – 68 mm Conical On-Demand Grinder

Compak F10 Conic OD: conical grinding with capacity

At around 317 rpm, the F10’s conical burrs barely warm the coffee. Its 1.9 kg hopper means fewer refills on busy mornings.

Daily use of the F10 Conic OD

Slow conical burrs and a large hopper make the F10 Conic OD a practical choice for cafés with busy mornings and long services. Fewer refills mean staff spend more time on coffee, and the cool grinding helps keep shot times steadier as the day goes on.

Portafilter detection starts the programmed dose as soon as the handle is in place, which keeps the workflow quick. Use the micrometric adjustment in small steps when a new blend arrives. Do not let a large hopper become a store of old beans; fill it to match the day’s expected volume, and brush out the chute regularly.

Smart dosing

Electronic doses start when the portafilter is detected, and micrometric adjustment makes it easy to keep extraction on target.

Specifications

• F10 Conic OD burrs: 68 mm conical
• F10 Conic OD motor: 800 W
• F10 Conic OD burr speed: 317 rpm
• F10 Conic OD hopper: 1.9 kg
• F10 Conic OD grinding output: 4.2 g/s
• F10 Conic OD weight: 16.9 kg
• F10 Conic OD footprint: 215 × 400 × 660 mm

Compare

The newer E10 Master Conic OD adds a touchscreen. A doser version is the K10 Master Conic. See all Compak grinders.
