Gaggia Classic Group Body – Chrome-Plated Brew Group

Group head body for Gaggia Classic and Baby

The group body carries the portafilter lugs, the shower screen and the gasket seat. If the lugs are worn or the housing is corroded, the portafilter will not lock tightly no matter how new the gasket is. It is usually replaced alongside the boiler during a full rebuild.

Chrome finish, drilled mounting flange

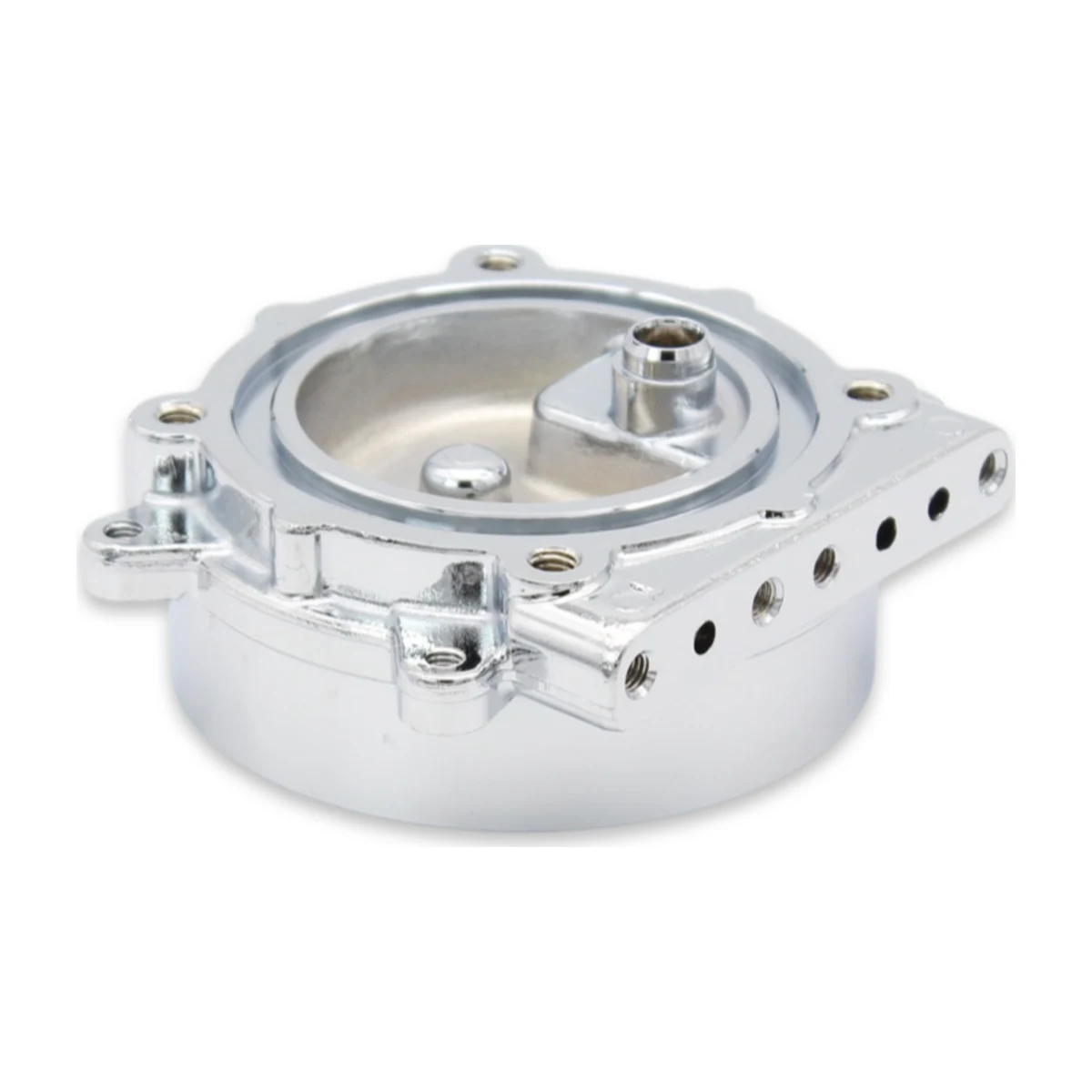

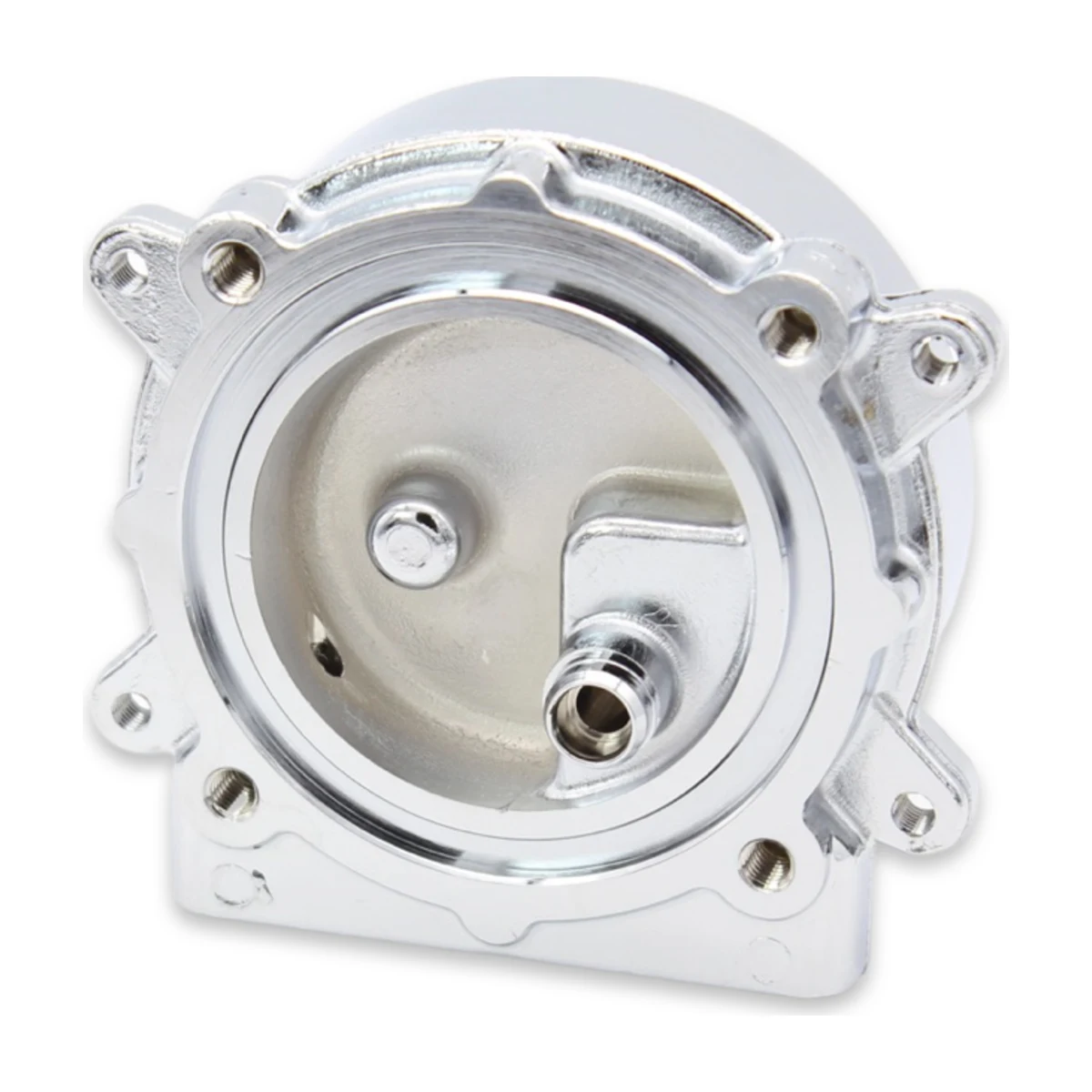

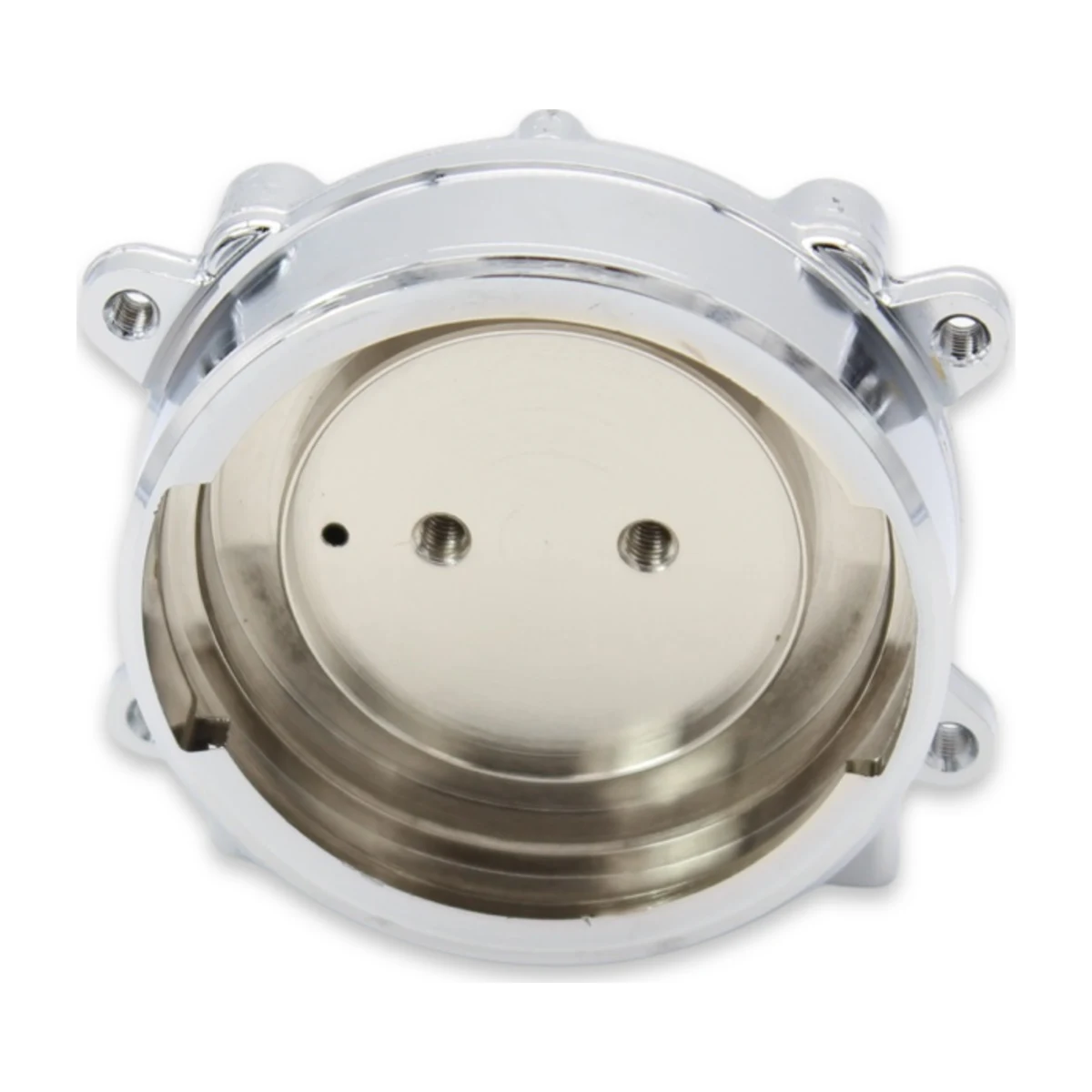

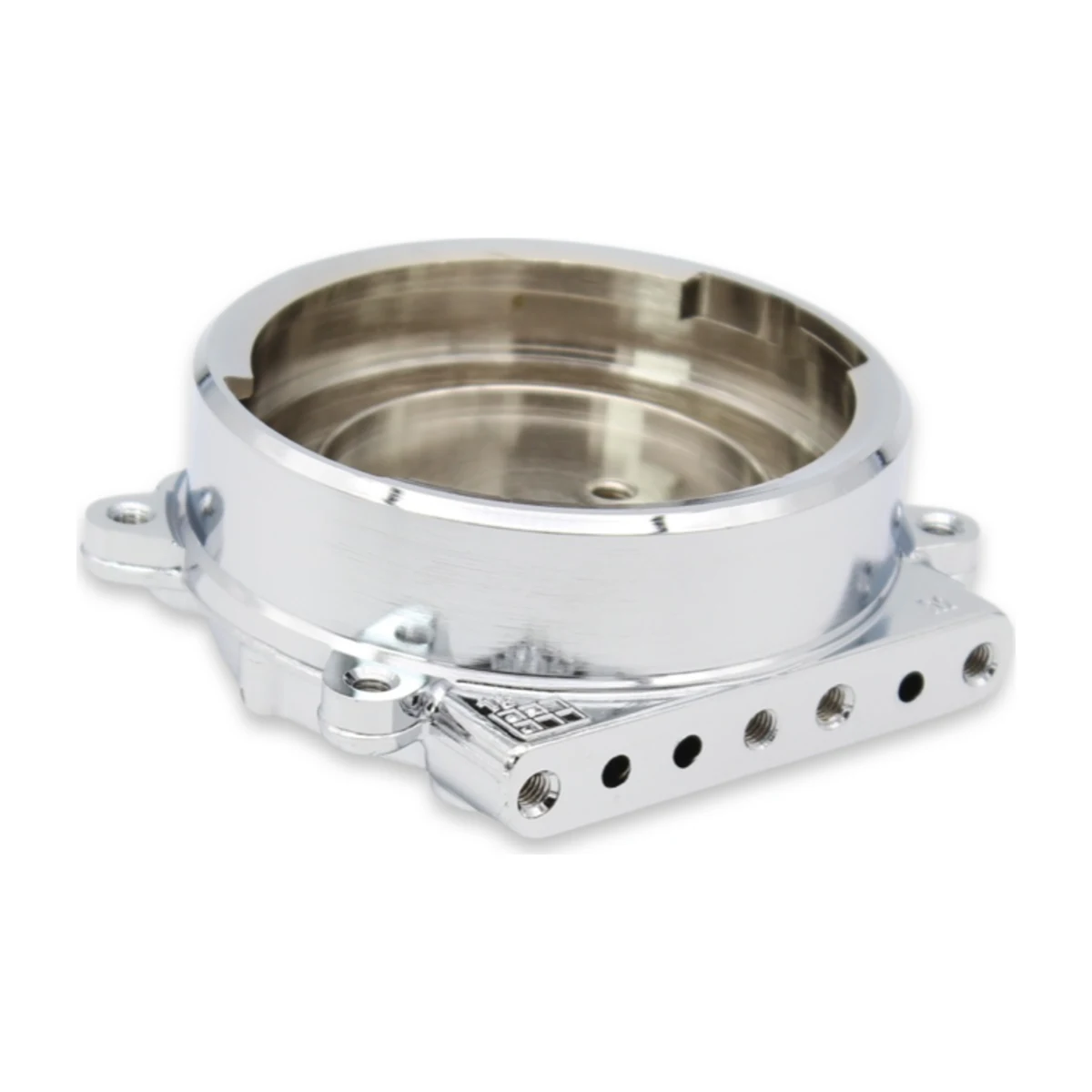

This housing has a bright chrome finish over metal, a ring of threaded mounting holes and a side manifold that bolts to the boiler. Inside you can see the bayonet ramps and the central screw points for the dispersion plate.

Specifications

• Gaggia Classic Group Body Part: Group body / group head housing
• Gaggia Classic Group Body Supplier refs.: B0171, B0181, 996530052248, 996530052259
• Gaggia Classic Group Body Finish: Chrome-plated
• Gaggia Classic Group Body Size: approx. 90 × 90 × 37 mm
• Gaggia Classic Group Body Weight: approx. 0.5 kg

Fits these Gaggia models

Listed for Gaggia Classic, Baby, Baby 89/91, New Baby and New Baby 06, Paros, Tebe and the KitchenAid version; not for Carezza, Coffee, Cubika, Evolution, Gran Gaggia or Viva. Seal it with a silicone Gaggia group gasket and pair it with the Gaggia Classic boiler.

Replacing a group body is a bench job – our Melbourne repair team can fit it for you.
