IMS Competition Shower Screen 53 mm – Breville Barista Express

IMS BV200IM Shower Screen for Breville 54 mm Groups

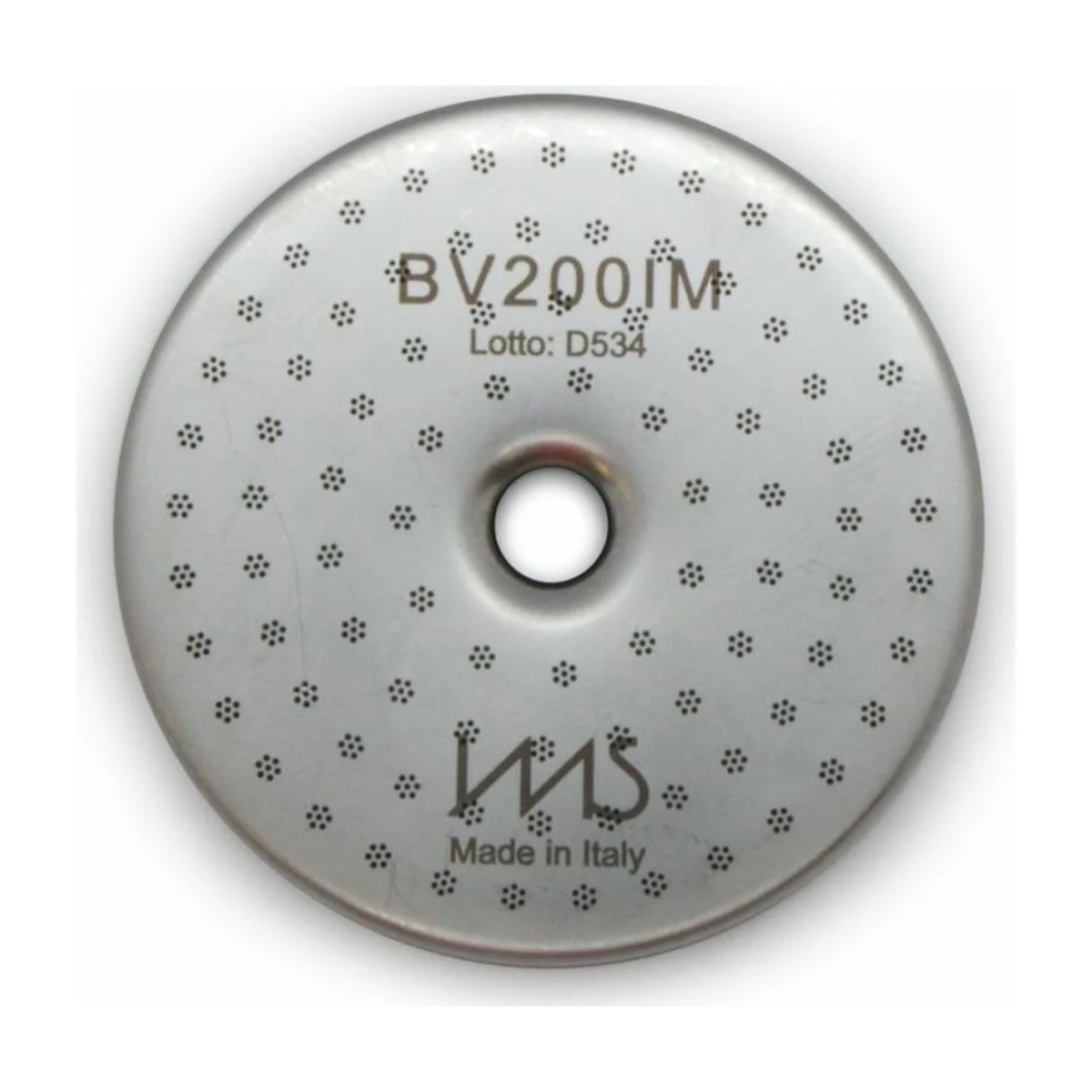

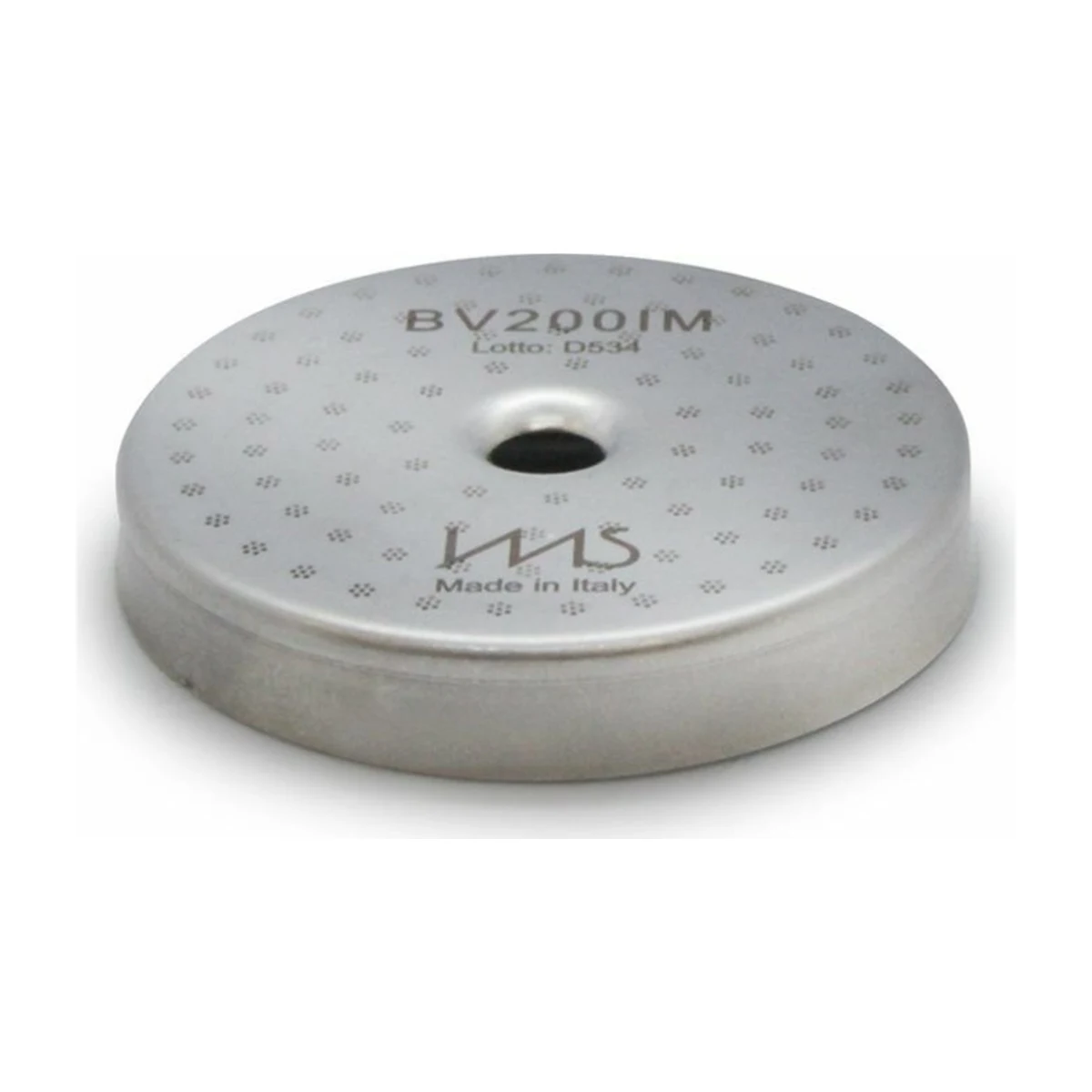

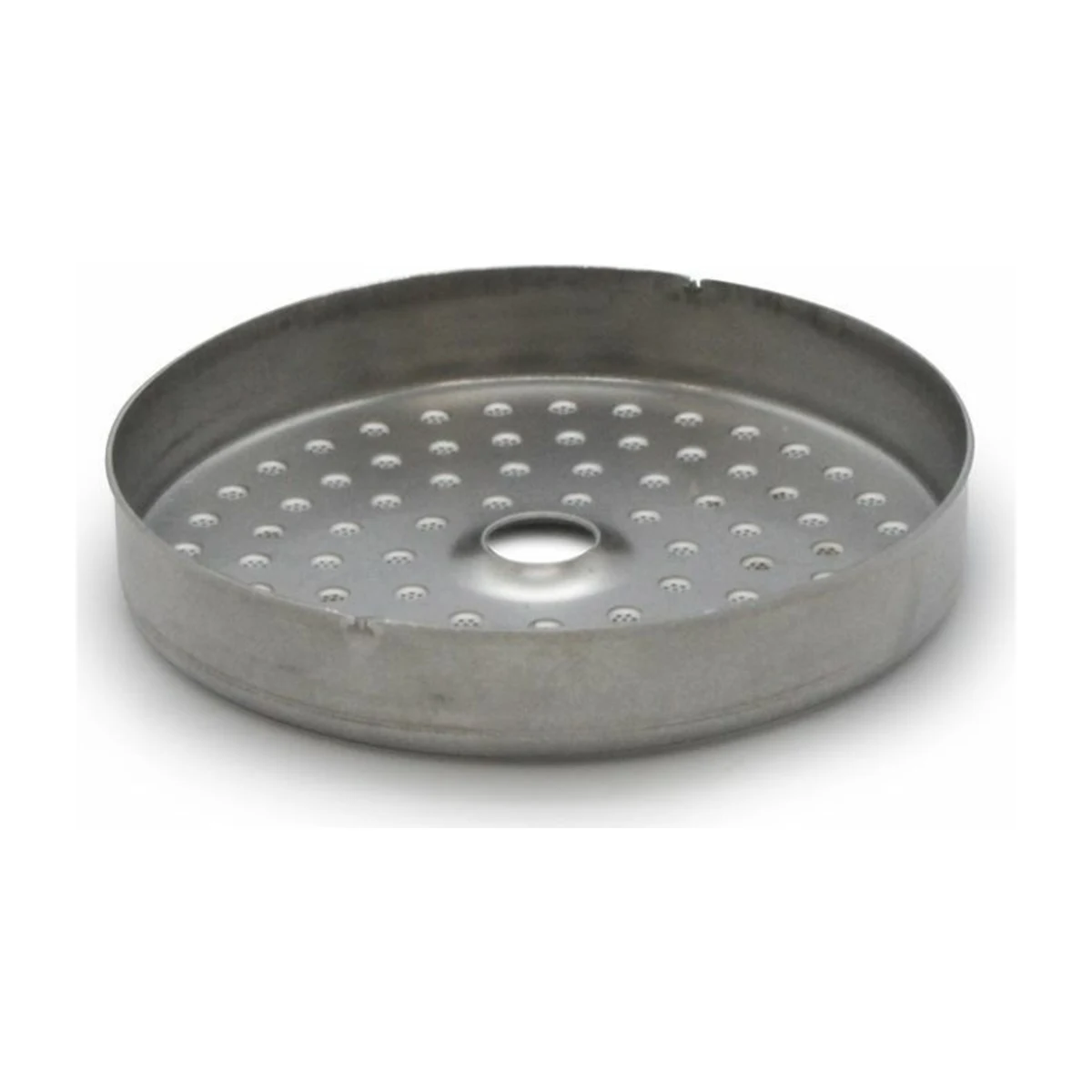

The standard Breville screen is a mesh-and-plate stack that clogs easily. This IMS screen replaces it with a single stainless steel piece, marked BV200IM, whose fine 200 µm openings are formed directly in the metal. Water is spread more evenly across the puck, and there is no loose mesh to trap coffee.

Why baristas upgrade

Even saturation means less channelling and more repeatable shots from the same dose and grind. The one-piece design is quick to wipe clean and does not hold old oils the way layered screens do. Tighten the centre screw gently, as over-tightening can bow the screen.

Specifications

• IMS BV200IM 53 mm Screen Outside diameter: 53 mm
• IMS BV200IM 53 mm Screen Model: IMS BV200IM
• IMS BV200IM 53 mm Screen Membrane: 200 µm integrated
• IMS BV200IM 53 mm Screen Hole clusters: 89, 2 mm
• IMS BV200IM 53 mm Screen Centre hole: 6.8 mm
• IMS BV200IM 53 mm Screen Material: AISI 316 stainless steel
• IMS BV200IM 53 mm Screen Made in: Italy

Compatible machines

Fits Breville and Sage Barista Express (BES870), Barista Pro (BES878), Barista Touch (BES880), Bambino Plus, Infuser and Duo Temp Pro. For the dual-boiler range, see our 51.5 mm IMS competition screen. Pair it with a good tamp from our coffee tamper range.

Our repair service can fit it for you along with a new group seal.
