Orchestrale Nota EVO – E61 Touchscreen Espresso Machine with Rotary Pump

Orchestrale Nota EVO: touchscreen control on an E61 classic

The Nota EVO takes the curved, Italian-built Nota body and adds a round touch display above the group. Behind the panels sits a 3-litre copper boiler, a raised E61 brew group and a 100 L/h Fluid-o-Tech GA rotary pump driven by a speed-controlled motor. A pressure transducer reads what the pump is doing, while an NTC probe feeds the PID so the temperature you set is the temperature you get.

What the screen lets you change

From the display you can set brew temperature, programme four volumetric doses and four pre-infusion times, and watch flow rate alongside a digital chrono. A shot timer and counter keep track of your routine, and service parameters are tucked into their own menu. Three saved profiles change the balance of the machine: Extraction for dialling in single origins and blends, Latte/Steam for strong steaming and latte art, and Hybrid for a mix of both.

Water supply your way

A switch selects between the 2.2-litre tank, which has a capacitive level sensor, and a direct mains connection, so it can sit on a bench or be plumbed in later.

Specifications

• Nota EVO group: E61, raised
• Nota EVO boiler: 3 L copper
• Nota EVO pump: Fluid-o-Tech GA rotary, 100 L/h, variable-speed motor
• Nota EVO water: 2.2 L tank with level sensor, or mains connection
• Nota EVO control: PID touchscreen, 4 doses, 4 pre-infusions, flow rate, shot timer

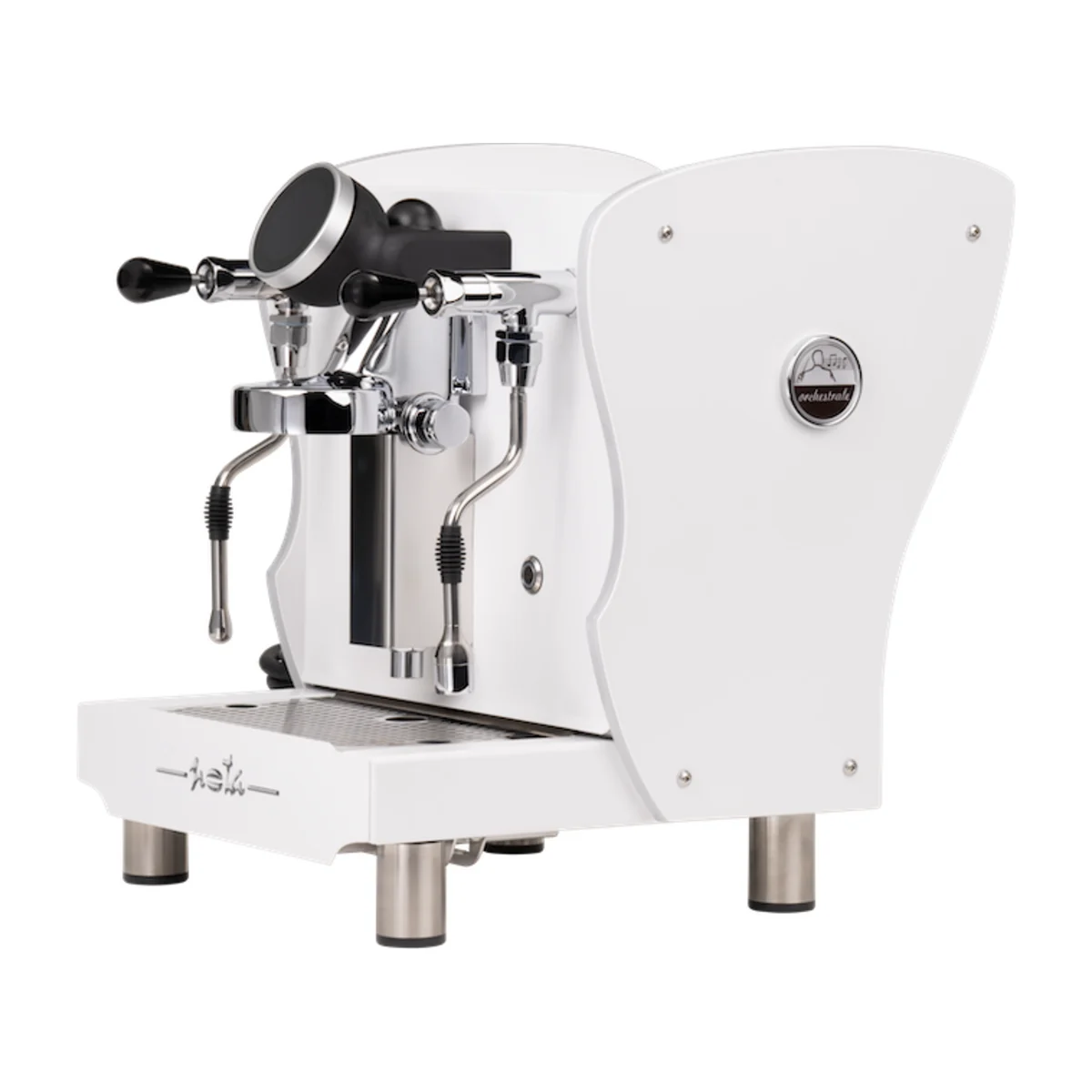

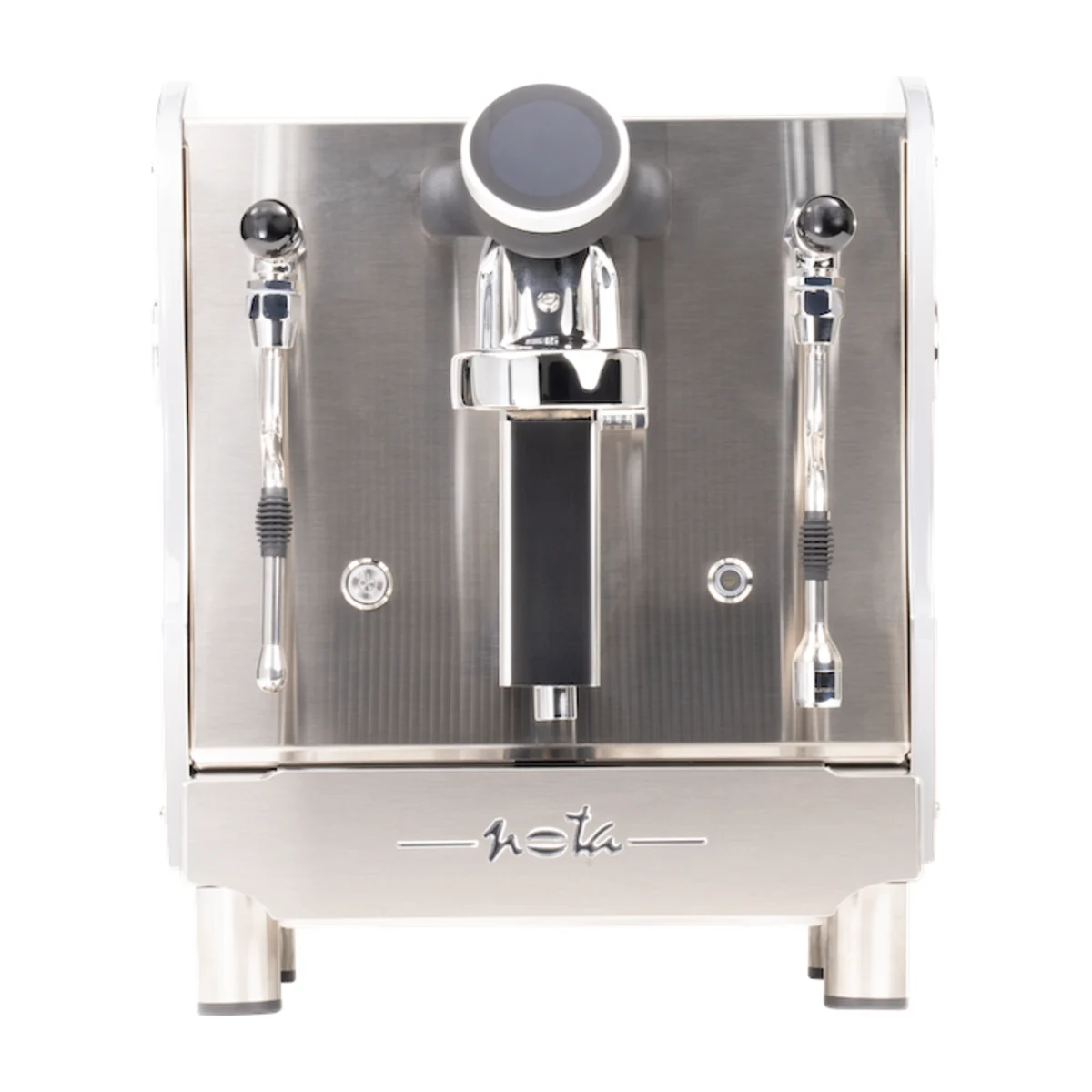

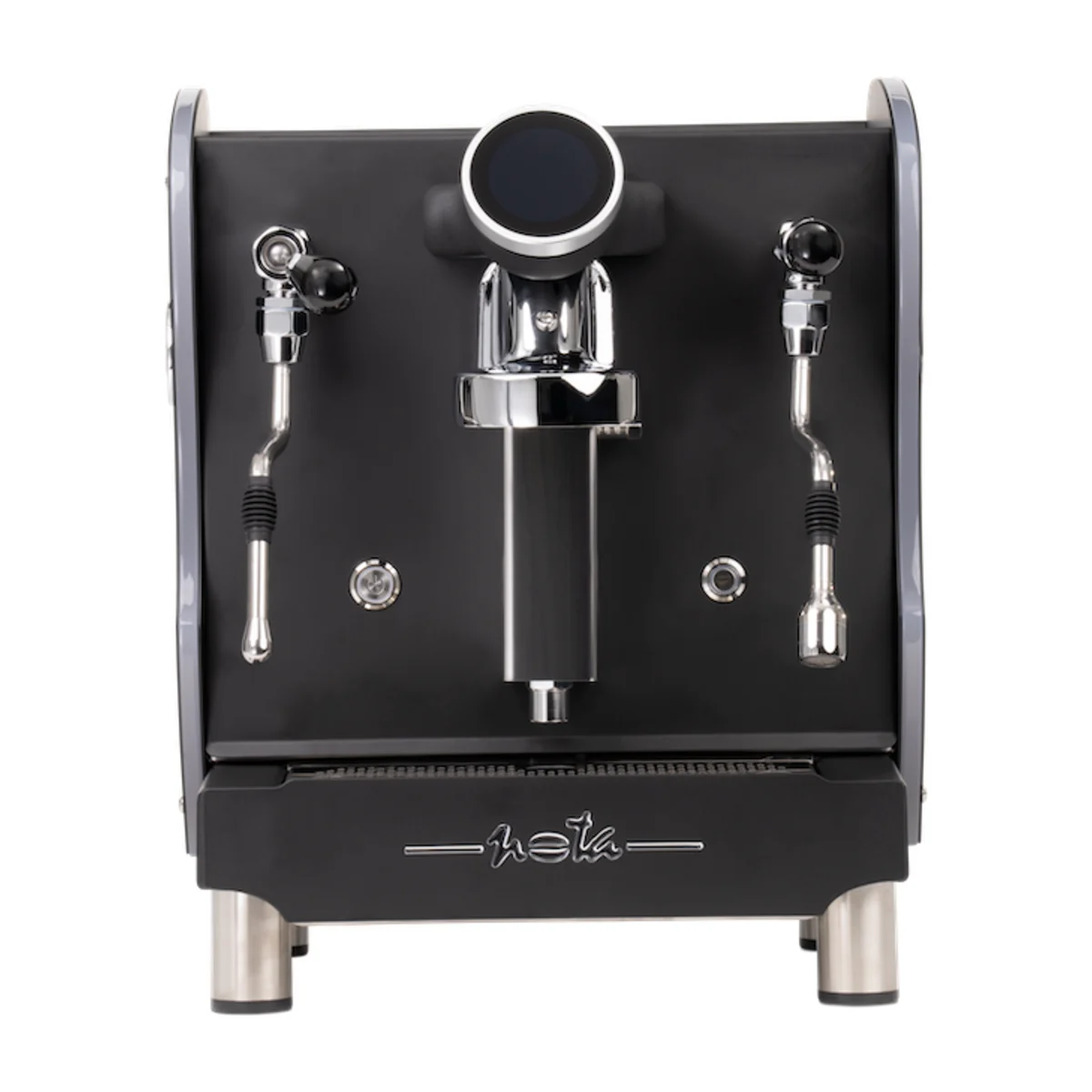

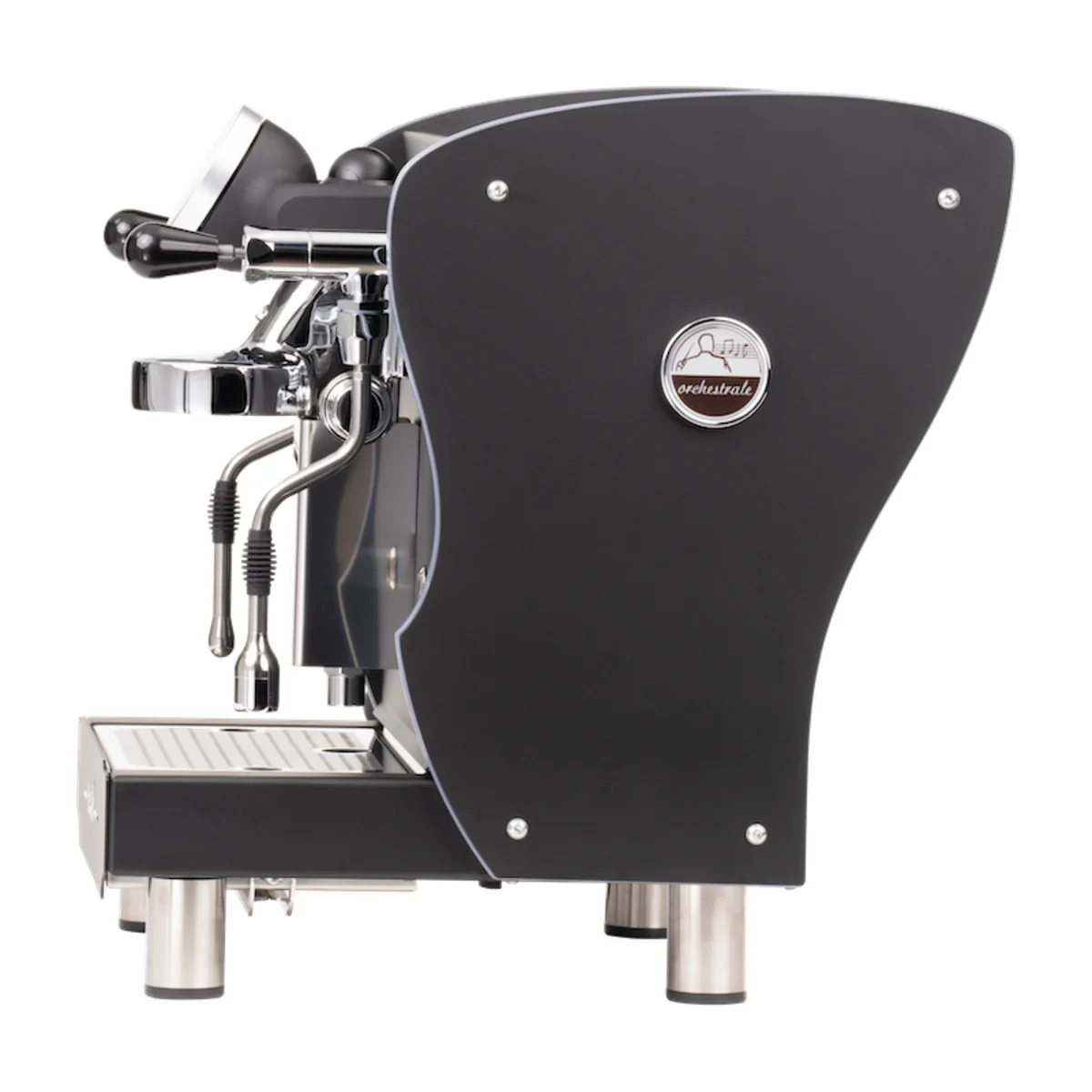

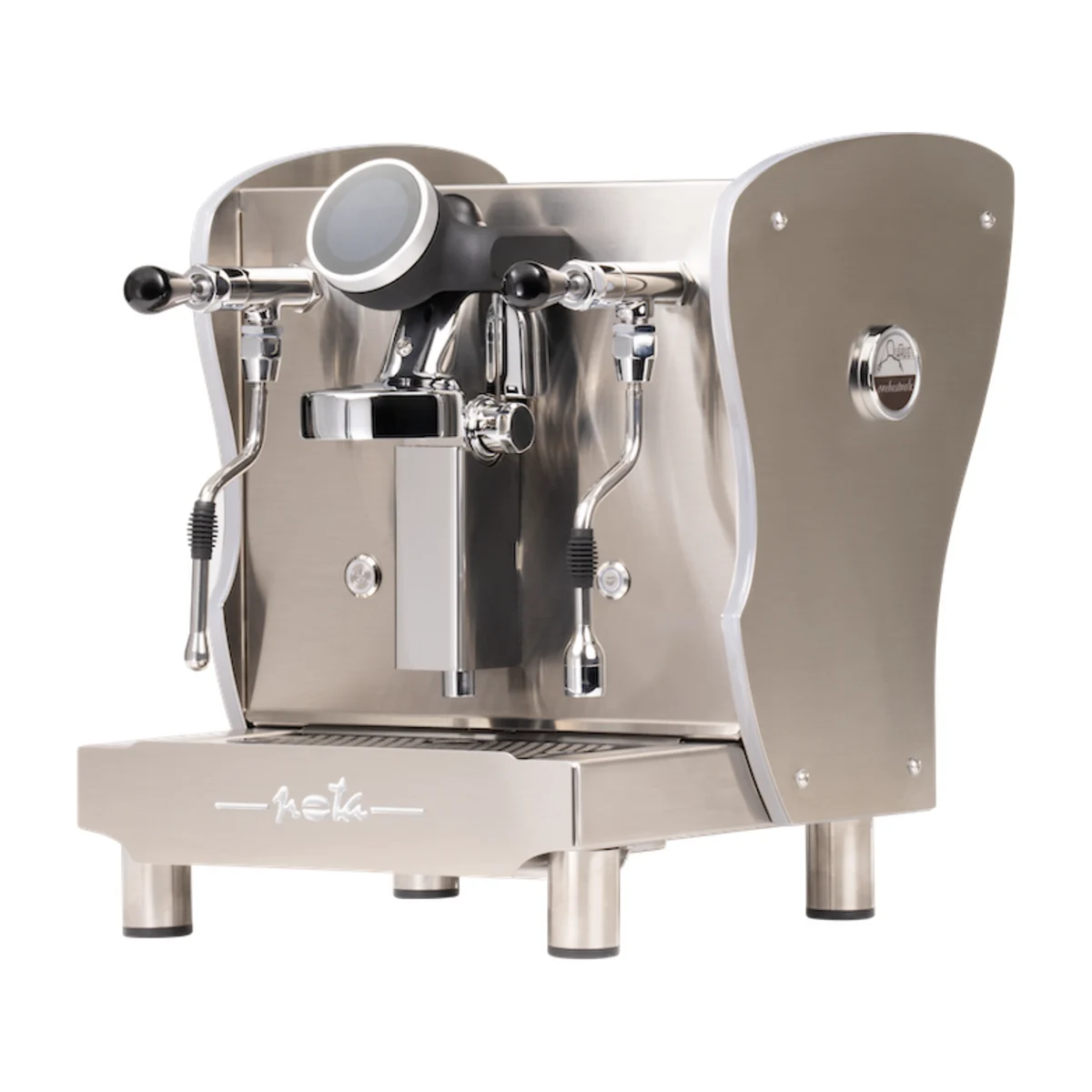

• Nota EVO finishes: White, Black, Steel

Is the Nota EVO right for you?

Pick it if you like data and repeatable recipes; the manual Orchestrale Nota Steel keeps things simpler. It suits home kitchens or a very small office. Pair it with a home coffee grinder and fresh coffee beans, or compare the wider Orchestrale range. We also handle coffee machine repairs and servicing. Questions? Call 1300 529 505.
