Anti-Vacuum Valve 1/4″ M – Brass Pin Type, ECM, Bezzera, Grimac

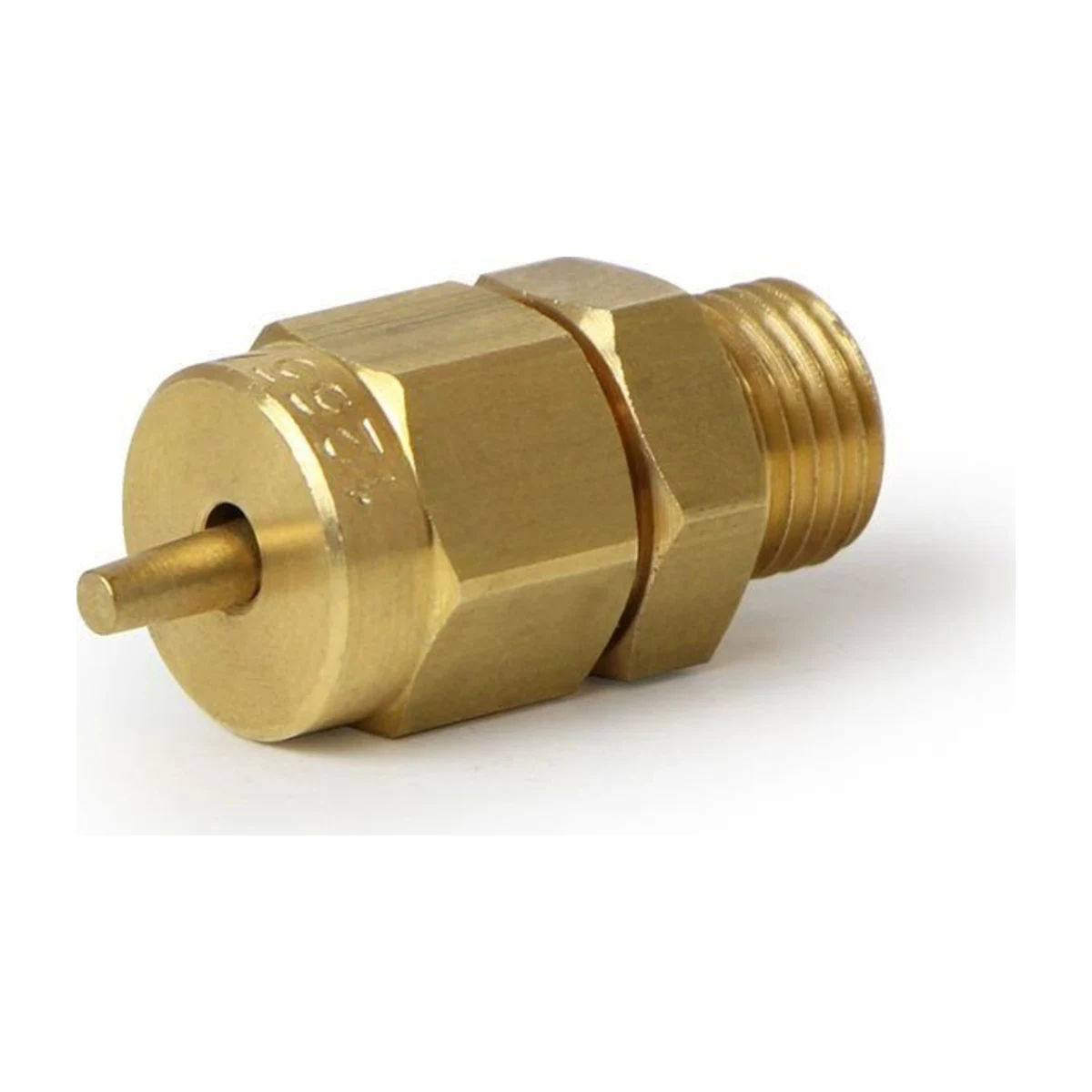

Brass Pin-Type 1/4″ Anti-Vacuum Valve

This is the style of anti-vac where a brass pin rises to seal under steam pressure and falls to let air in as the boiler cools. You can often see it move, which makes checking it easy. Anti-vacs like this sit on top of the boiler, usually near the pressure switch.

Two-Piece Brass Body

The valve is solid brass, with a round cap on a double hex body and a 1/4″ male thread. If the pin sticks from scale it may hiss constantly or stay shut, and cleaning only goes so far. Fit it with the machine cold and drained, and seal the thread with PTFE tape so it does not weep.

Specifications

• 1/4″ Brass Pin Anti-Vacuum Valve Type: Anti-vacuum valve, pin type
• 1/4″ Brass Pin Anti-Vacuum Valve Thread: 1/4″ male
• 1/4″ Brass Pin Anti-Vacuum Valve Material: Brass
• 1/4″ Brass Pin Anti-Vacuum Valve Quantity: 1 valve

Check Before You Order

The old listing names ECM Mechanika and Elektronika Profi, Bezzera Ellisse and Grimac machines, among others. Match the shape and thread of your old valve. Other styles: nickel-plated 1/4″ anti-vac and brass anti-vac with hose tail.

Not sure which valve your machine has? Book a repair and we can fit it for you. More boiler valves and fittings are in our spare parts range.
