Anti-Vacuum Valve 1/4″ M – Brass, for Expobar Machines

Vacuum breaker for Expobar boilers

As a boiler cools, steam condenses and can pull a vacuum that draws milk or water back through the wands. The anti-vacuum valve lets air in at that point and seals again once pressure builds.

Brass body, PTFE seat

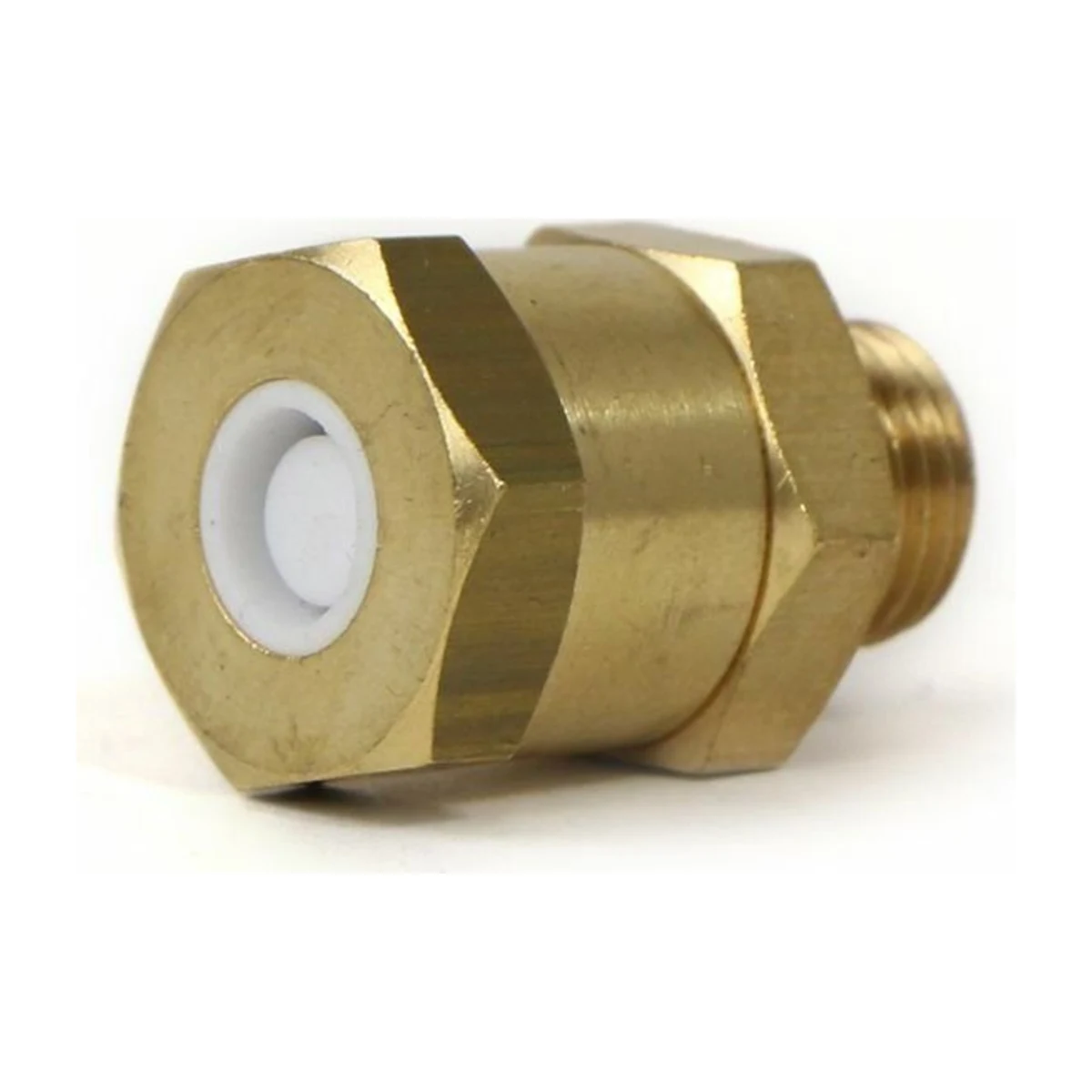

The valve has a hex brass body, a 1/4″ male thread and a white PTFE-capped plunger that lifts to vent. A valve that hisses constantly or never vents should be replaced; mineral build-up is the common cause. Expobar boilers use this particular body length and thread, so a generic valve may not seat correctly; match the shape against your old part before ordering.

Specifications

• Expobar Anti-Vacuum Valve 1/4″ Thread: 1/4″ male
• Expobar Anti-Vacuum Valve 1/4″ Supplier code: PS1515016
• Expobar Anti-Vacuum Valve 1/4″ Material: Brass, PTFE seat
• Expobar Anti-Vacuum Valve 1/4″ Height: approx. 30 mm
• Expobar Anti-Vacuum Valve 1/4″ Width: approx. 15 mm
• Expobar Anti-Vacuum Valve 1/4″ Pack size: 1 valve

Expobar models listed

Supplier notes list Expobar Diamant, EB61, Elen, G10, Markus, Markus Silver, Megacrem, Monroc, New Elegance and Office. For other brands see the 1/4″ anti-vacuum valve or the 1/2″ boiler safety valve.
